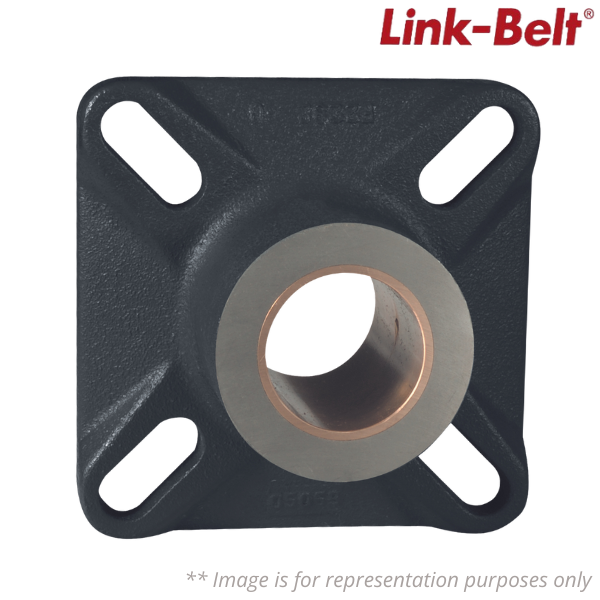

F2219Z Link-Belt

Brand - Link-Belt
Item Number - F2219Z Link-Belt
Category - Flange Blocks Sleeve Bearing
UPC - 662327035921
Material - 10426984
Model - F2200Z
Bore Size (in) - 1 3/16 in
Housing Coating - POWDER COATED
Housing Material - Cast Iron
Housing Style - Flange Block
Housing Type - Flange Block, Four Bolt
Sleeve Material - Bronze
Bearing Brand - LINK-BELT RIGID SLEEVE
Bearing Type - BRONZE SLEEVE BRG
Bolt Hole Circle Diameter (in) - 3 9/16 in
Bore Length (in) - 2 1/2 in
Distance Between Bolt Holes [Max] (in) - 3 1/4 in
Distance Between Bolt Holes [Min] (in) - 2 1/2 in
Grease Fitting Size - 1/8 NPT
Height - 3
Insert - 285Y2225
Length - 5
Lubrication Type - NOT GREASED FROM FACTORY
Mounting Bolt Size (in) - 1/2 in
Mounting Housing Width (in) - 5/8 in
Mounting Pad Width (in) - 4 1/4 in
Weight (kg) - 1.65107488
Pipe Tap Size (in) - 1/8 in
Unit of Dimension - IN
Volume - 0.325
Volume Unit - GLL
Width - 5
