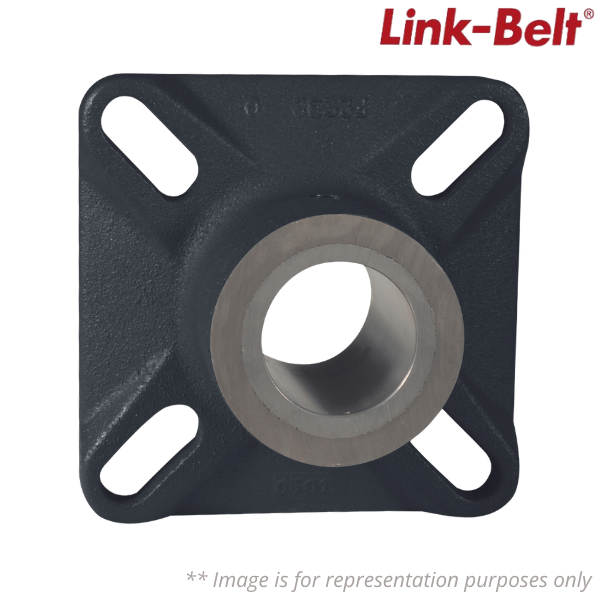

F2212 Link-Belt

Brand - Link-Belt
Item Number - F2212 Link-Belt
Category - Flange Blocks Sleeve Bearing
UPC - 662327035860
Material - 10425576
Model - F2200
Bore Size (in) - 0.75 in
Housing Coating - POWDER COATED
Housing Material - Cast Iron
Housing Style - Flange Block
Housing Type - Flange Block, Four Bolt
Sleeve Material - Babbitt
Bearing Brand - LINK-BELT RIGID SLEEVE
Bearing Type - BABBITT SLEEVE BRG
Bolt Hole Circle Diameter (in) - 3 in
Bore Length (in) - 1 1/2 in
Distance Between Bolt Holes [Max] (in) - 2 1/2 in
Distance Between Bolt Holes [Min] (in) - 2 1/8 in
Grease Fitting Size - 1/8 NPT
Height - 2.13
Length - 3.69
Lubrication Type - NOT GREASED FROM FACTORY
Maximum Temperature (C) - 54 C
Maximum Temperature (F) - 130 F
Mounting Bolt Size (in) - 3/8 in
Mounting Housing Width (in) - 7/16 in
Mounting Pad Width (in) - 3 3/8 in
Weight (kg) - 0.65317248
Pipe Tap Size (in) - 1/8 in
Unit of Dimension - IN
Volume - 0.125
Volume Unit - GLL
Width - 3.69
