Description
Brand - ZEN

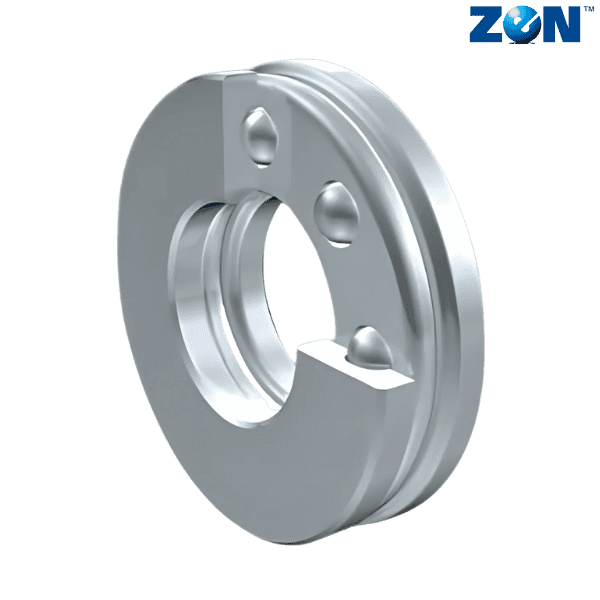

Item Number - F10-18-M ZEN
Category - Three Part Thrust Series
Inner ring dimension (d) mm - 10
Outer ring dimension (D) mm - 18
Width (B) mm - 5.5
Dynamic Load Rating (N) - 617
Static Load Rating (N) - 706
Limiting Speed (Oil) - 3
Weight (kg) - 0.006
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Notes :
M - Brass Cage
F - Metric with Flange
** Images are for representation purposes only
