Description

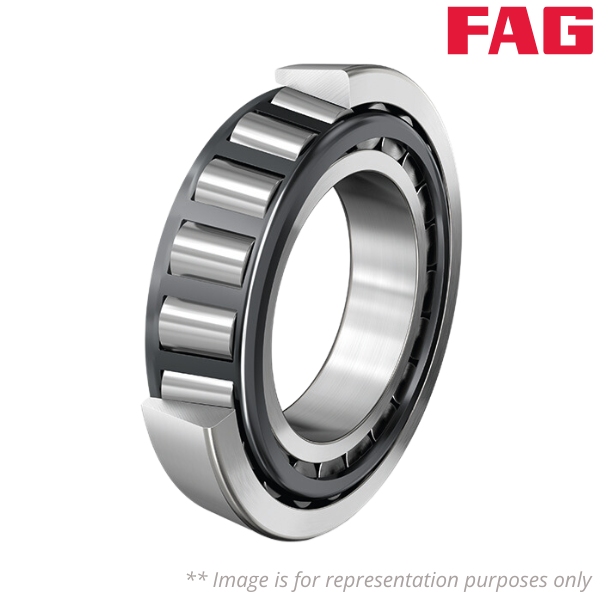

Brand - FAG
Item Number - F-804120.32026-X-XL-S1 FAG
Category - Tapered Roller Bearing Single Row (Standard)
Weight (m) kg - 4.92

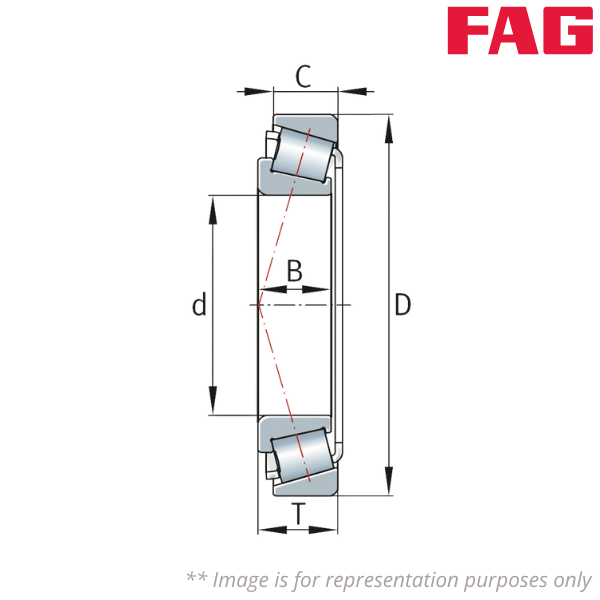

Inner Diameter (d) mm - 130
Outer Diameter (D) mm - 200
Inner Ring Width (B) mm - 45
Outer Ring Width (C) mm - 34
Total Width (T) mm - 45
Basic Dynamic Load Rating (C) N - 385000
Basic Static Load Rating (C0) N - 550000
Limiting Speed (n) min–1 - 3650
