Description
Brand - FAG

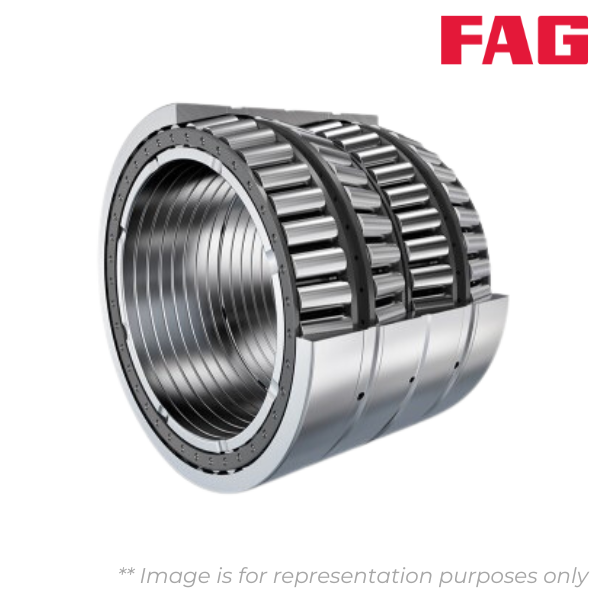

Item Number - F-802200.TR4 FAG
Category - Four-Row Tapered Roller Bearing
Weight (Kg) - 88
Inner Diameter (d) mm - 260
Outer Diameter (D) mm - 368
Outer Width (T) mm - 268
Inner Width (B) mm - 268
Basic Dynanic Load Rating (Cr) kN - 3100
Basic Static Load Rating (C0r) kN - 6100
Dynamic Axial Load Factor (Y1) - 1.93
Dynamic Axial Load Factor (Y2) - 2.88
Static Axial Load Factor (Y0) - 1.9
