Description
Brand - FAG

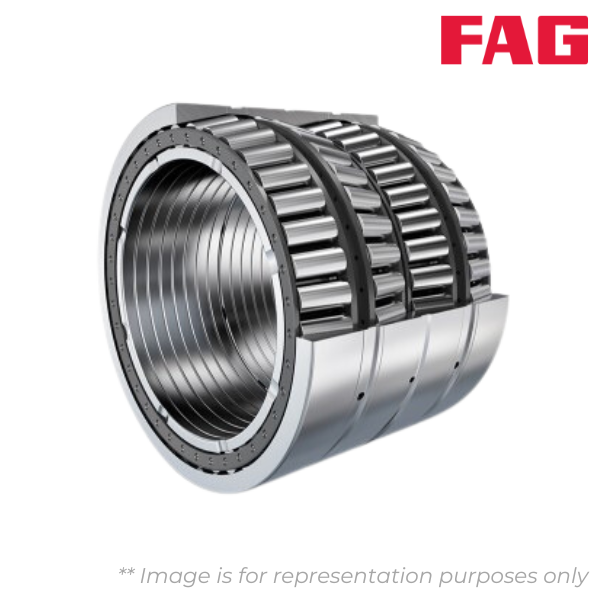

Item Number - F-802182.TR4-M-H122AA FAG
Category - Four-Row Tapered Roller Bearing
Weight (Kg) - 2060
Inner Diameter (d) mm - 730.25
Outer Diameter (D) mm - 1035.05
Outer Width (T) mm - 755.65
Inner Width (B) mm - 755.65
Basic Dynanic Load Rating (Cr) kN - 23600
Basic Static Load Rating (C0r) kN - 54000
Dynamic Axial Load Factor (Y1) - 2.03
Dynamic Axial Load Factor (Y2) - 3.02
Static Axial Load Factor (Y0) - 1.98
Fatigue Limit Load (Cur) kN - 4200
