Description
Brand - FAG

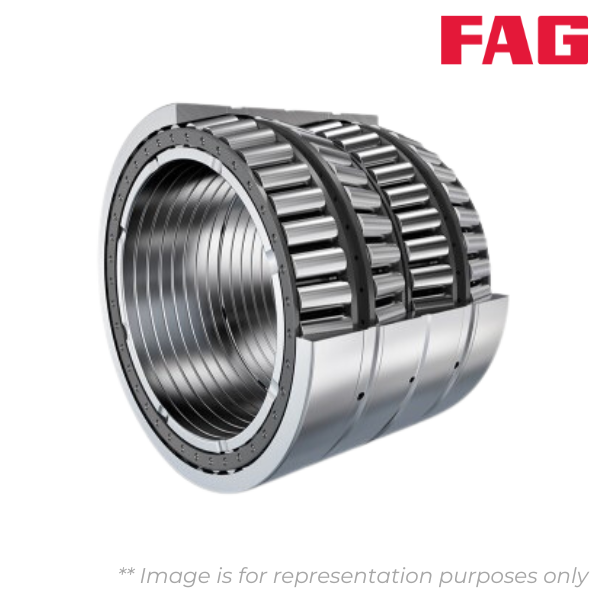

Item Number - F-802141.TR4-M FAG
Category - Four-Row Tapered Roller Bearing
Weight (Kg) - 1850
Inner Diameter (d) mm - 645
Outer Diameter (D) mm - 1030
Outer Width (T) mm - 560
Inner Width (B) mm - 560
Basic Dynanic Load Rating (Cr) kN - 18400
Basic Static Load Rating (C0r) kN - 34000
Dynamic Axial Load Factor (Y1) - 2.16
Dynamic Axial Load Factor (Y2) - 3.22
Static Axial Load Factor (Y0) - 2.1
Fatigue Limit Load (Cur) kN - 2650
