Description
Brand - FAG

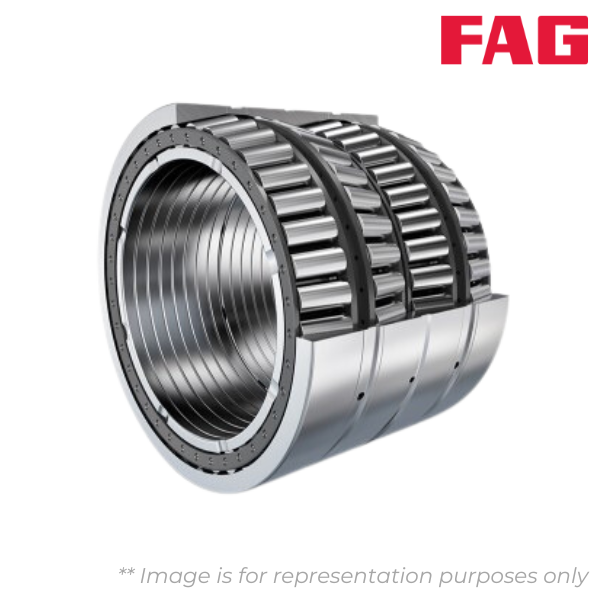

Item Number - F-802121.TR4-M-H122DZ FAG
Category - Four-Row Tapered Roller Bearing
Weight (Kg) - 634
Inner Diameter (d) mm - 710
Outer Diameter (D) mm - 900
Outer Width (T) mm - 410
Inner Width (B) mm - 410
Basic Dynanic Load Rating (Cr) kN - 10600
Basic Static Load Rating (C0r) kN - 27000
Dynamic Axial Load Factor (Y1) - 1.95
Dynamic Axial Load Factor (Y2) - 2.9
Static Axial Load Factor (Y0) - 1.9
Fatigue Limit Load (Cur) kN - 2180
