Description
Brand - FAG

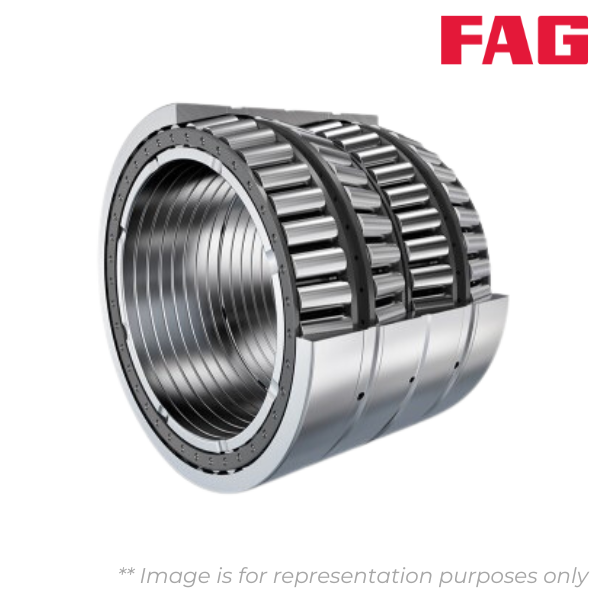

Item Number - F-802025.TR4-H122AF FAG
Category - Four-Row Tapered Roller Bearing
Weight (Kg) - 98.1
Inner Diameter (d) mm - 304.902
Outer Diameter (D) mm - 412.648
Outer Width (T) mm - 266.7
Inner Width (B) mm - 266.7
Basic Dynamic Load Rating (Cr) kN - 3050
Basic Static Load Rating (C0r) kN - 6100
Dynamic Axial Load Factor (Y1) - 2.12
Dynamic Axial Load Factor (Y2) - 3.15
Static Axial Load Factor (Y0) - 2.07
Fatigue Limit Load (Cur) kN - 620
