Description
Brand - FAG

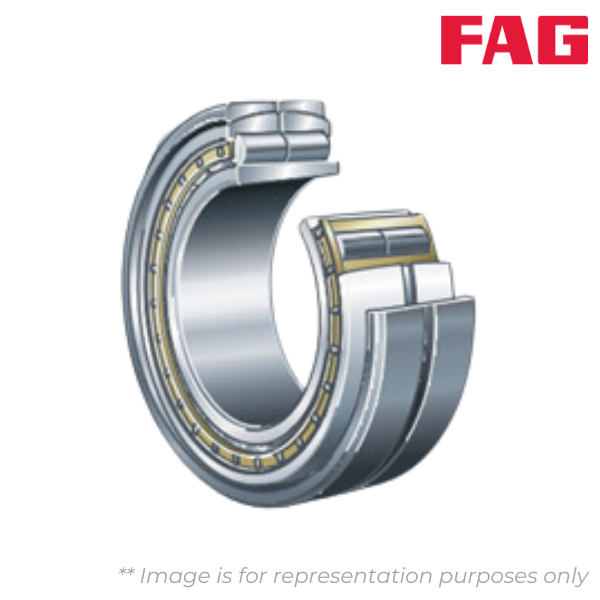

Item Number - F-800594.ZL-K-C5 FAG
Category - Self-Aligning Cylindrical Roller Bearing
Weight (Kg) - 1430
Inner Diameter (d) mm - 710
Outer Diameter (D) mm - 1150
Inner Width (B) mm - 345
Minimum Chamfer Dimension (r) mm - 7.5
Axial Displacement (s) mm - 38.5
Raceway Diameter Inner Ring (F) mm - 795
Width of Lubrication (ns) mm - 23.5
Maximum Diameter of Shaft Shoulder (da) mm - 787.9
Maximum Diameter of Housing Shoulder (Da) mm - 1110
Maximum Fillet Radius of Shaft (ra) mm - 6
Basic Dynamic Load Rating (Cr) kN - 10800
Basic Static Load Rating (C0r) kN - 24200
Fatigue Limit Load (Cur) kN - 1850
Limiting Speed (nG) rpm - 600
