Description
Brand - FAG

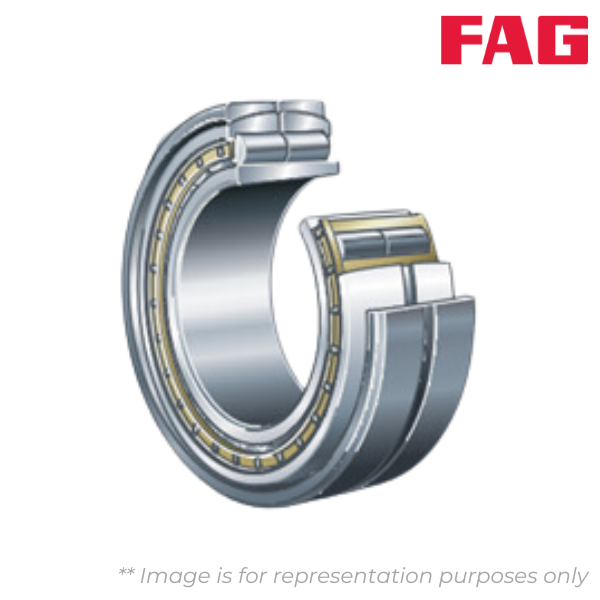

Item Number - F-800484.ZL-K-C5 FAG
Category - Self-Aligning Cylindrical Roller Bearing
Weight (Kg) - 621
Inner Diameter (d) mm - 500
Outer Diameter (D) mm - 830
Inner Width (B) mm - 264
Minimum Chamfer Dimension (r) mm - 7.5
Axial Displacement (s) mm - 28
Raceway Diameter Inner Ring (F) mm - 568
Width of Lubrication (ns) mm - 23.5
Maximum Diameter of Shaft Shoulder (da) mm - 563
Maximum Diameter of Housing Shoulder (Da) mm - 798
Maximum Fillet Radius of Shaft (ra) mm - 6
Basic Dynamic Load Rating (Cr) kN - 6000
Basic Static Load Rating (C0r) kN - 12800
Fatigue Limit Load (Cur) kN - 1090
Limiting Speed (nG) rpm - 850
