Description
Brand - FAG

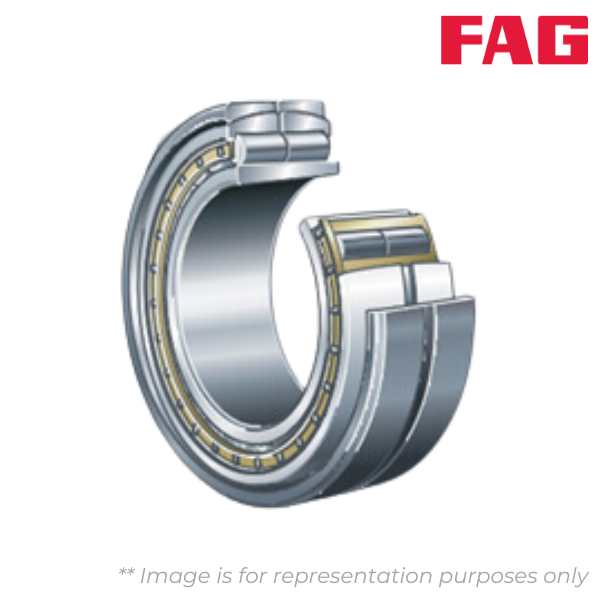

Item Number - F-800483.ZL-K-C5 FAG
Category - Self-Aligning Cylindrical Roller Bearing
Weight (Kg) - 507
Inner Diameter (d) mm - 480
Outer Diameter (D) mm - 790
Inner Width (B) mm - 248
Minimum Chamfer Dimension (r) mm - 7.5
Axial Displacement (s) mm - 27
Raceway Diameter Inner Ring (F) mm - 544
Width of Lubrication (ns) mm - 23.5
Maximum Diameter of Shaft Shoulder (da) mm - 539.2
Maximum Diameter of Housing Shoulder (Da) mm - 758
Maximum Fillet Radius of Shaft (ra) mm - 6
Basic Dynamic Load Rating (Cr) kN - 5300
Basic Static Load Rating (C0r) kN - 11200
Fatigue Limit Load (Cur) kN - 970
Limiting Speed (nG) rpm - 900
