Description
Brand - FAG
Item Number - F-800479.ZL-K-C5 FAG

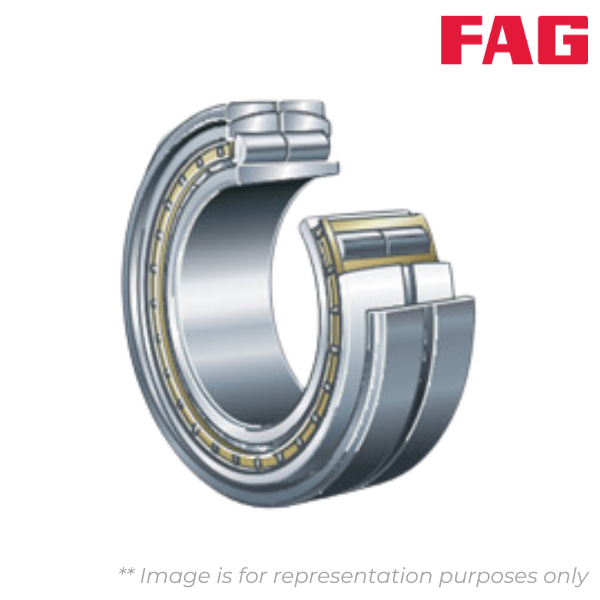

Category - Self-Aligning Cylindrical Roller Bearing
Weight (Kg) - 219
Inner Diameter (d) mm - 360
Outer Diameter (D) mm - 600
Inner Width (B) mm - 192
Minimum Chamfer Dimension (r) mm - 5
Axial Displacement (s) mm - 19
Raceway Diameter Inner Ring (F) mm - 425
Width of Lubrication (ns) mm - 23.5
Maximum Diameter of Shaft Shoulder (da) mm - 421.4
Maximum Diameter of Housing Shoulder (Da) mm - 580
Maximum Fillet Radius of Shaft (ra) mm - 4
Basic Dynamic Load Rating (Cr) kN - 3200
Basic Static Load Rating (C0r) kN - 6700
Fatigue Limit Load (Cur) kN - 630
Limiting Speed (nG) rpm - 1300
