Description
Brand - FAG
Item Number - F-623400.PRL FAG

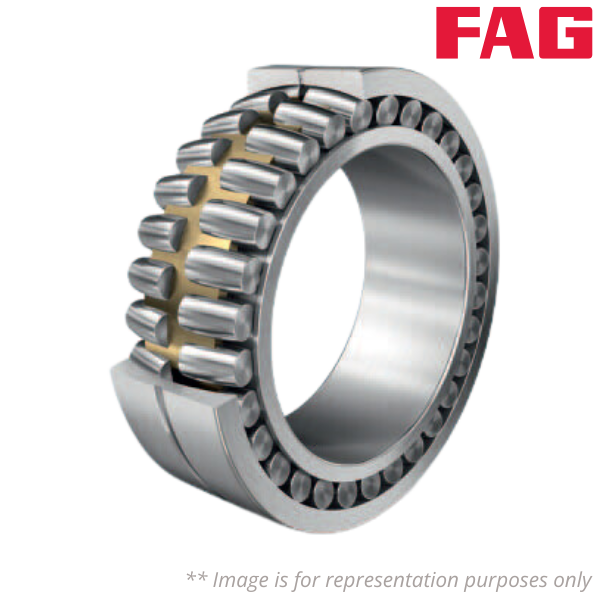

Category - Symmetrical Spherical Roller Bearing
Standard Designation - 230/500
Weight (m) kg - 230
Inner Diameter (d) mm - 500
Outer Diameter (D) mm - 720
Width (B) mm - 167
Minimum Chamfer Dimemsion (r min) mm - 6
Shoulder Diameter Outer Ring (D1) mm - 657
Diameter Lubriation Hole (ds) mm - 12.5
Width of Lubricating Groove (ns) mm - 23.5

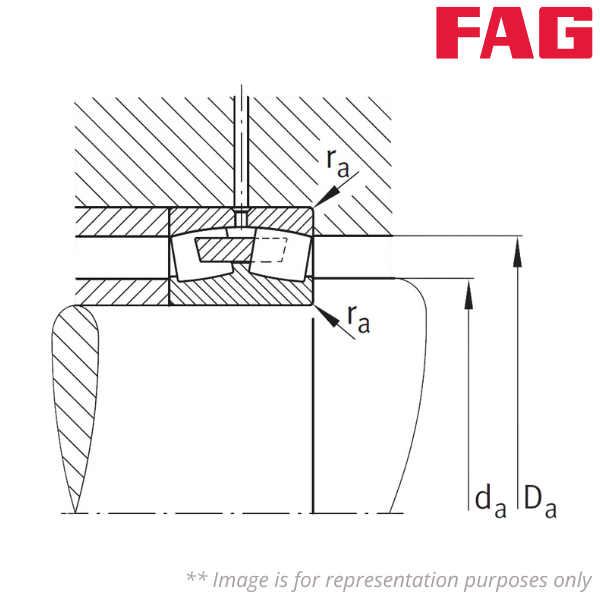

Minimum Diameter Shaft Shoulder (da) mm - 523
Maximum Diameter of Housing Shoulder (Da) mm - 697
Maximum Fillet Radius of Shaft (ra) mm - 5
Basic Dynamic Load Rating (C) kN - 4700
Basic Static Load Rating (C0r) kN - 8700
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.21
Dynamic Axial Load Factor (Y1) - 3.24
Dynamic Axial Load Factor (Y2) - 4.82
Static Axial Load Factor (Y0) - 3.16
Fatigue Limit Load (Cur) kN - 820
Limiting Speed (nG) rpm - 890
Reference Speed (nB) rpm - 510
