F 209 SS BECO


Country Of Origin: ITALY
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - BECO
Item Number - F 209 SS BECO
Category - Housing in Stainless Steel (not Magnetic)

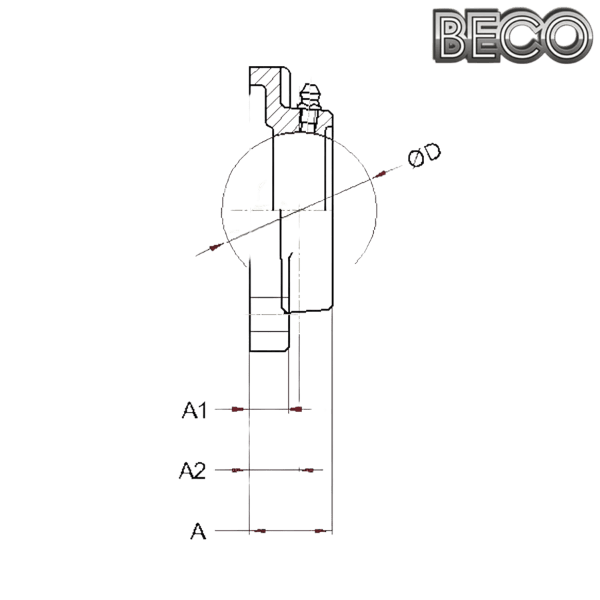

Diameter (D) mm - 85
Maximum Dimension (L) mm - 139
Dimension (J) mm - 105
Maximum Dimension (A) mm - 45
Maximum Dimension (A1) mm - 18
Dimension (A2) mm - 24
Diameter (N) mm - 15.0 ± 2.0
* Weight (kg) - 1.11

----------------------------------------------
Housing + Bearing = Bearing Unit
----------------------------------------------
F 209 SS + UC 209 BHTS ZZ C4 200° = UCF 209 BHTS ZZ C4 200°
F 209 SS + UC 209 BHTS 2RS VT 250°-280° = UCF 209 BHTS 2RS VT 250°-280°
F 209 SS + UC 209 BHTS ZZ 280° = UCF 209 BHTS ZZ 280°
F 209 SS + UC 209 BHTS ZZ 350° Beco Plus = UCF 209 BHTS ZZ 350° Beco Plus
F 209 SS + UC 209 BHTS ZZ GR CG 350° = UCF 209 BHTS ZZ GR CG 350°
F 209 SS + UC 209 BSS 2RS NSF H1 = UCF 209 BSS 2RS NSF H1

Note

* Weight for housings is indicative. The production is made from Stainless steel Casting and weight depends from the condition of the moulding

** Images are for representation purposes only
