F 205 SS BECO


Country Of Origin: ITALY
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - BECO
Item Number - F 205 SS BECO
Category - Housing in Stainless Steel (not Magnetic)

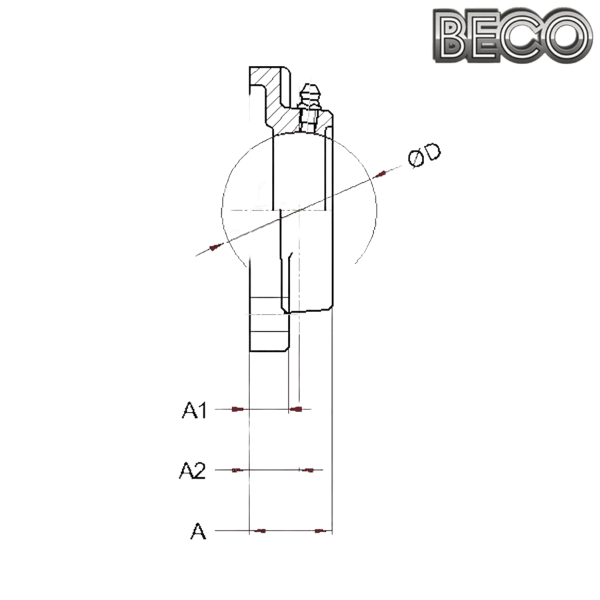

Diameter (D) mm - 52
Maximum Dimension (L) mm - 97
Dimension (J) mm - 70
Maximum Dimension (A) mm - 35
Maximum Dimension (A1) mm - 15
Dimension (A2) mm - 19
Diameter (N) mm - 12.0 ± 0.5
* Weight (kg) - 0.45

----------------------------------------------
Housing + Bearing = Bearing Unit
----------------------------------------------
F 205 SS + UC 205 BHTS ZZ C4 200° = UCF 205 BHTS ZZ C4 200°
F 205 SS + UC 205 BHTS 2RS VT 250°-280° = UCF 205 BHTS 2RS VT 250°-280°
F 205 SS + UC 205 BHTS ZZ 280° = UCF 205 BHTS ZZ 280°
F 205 SS + UC 205 BHTS ZZ 350° Beco Plus = UCF 205 BHTS ZZ 350° Beco Plus
F 205 SS + UC 205 BHTS ZZ GR CG 350° = UCF 205 BHTS ZZ GR CG 350°
F 205 SS + UC 205 BSS 2RS NSF H1 = UCF 205 BSS 2RS NSF H1

Note

* Weight for housings is indicative. The production is made from Stainless steel Casting and weight depends from the condition of the moulding

** Images are for representation purposes only
