ER20NC RBC NICE

Brand - RBC NICE
Item Number - ER20NC RBC NICE
Category - Precision Ground Radial Bearings with Extended Inner Ring and Metric Outside Diameter

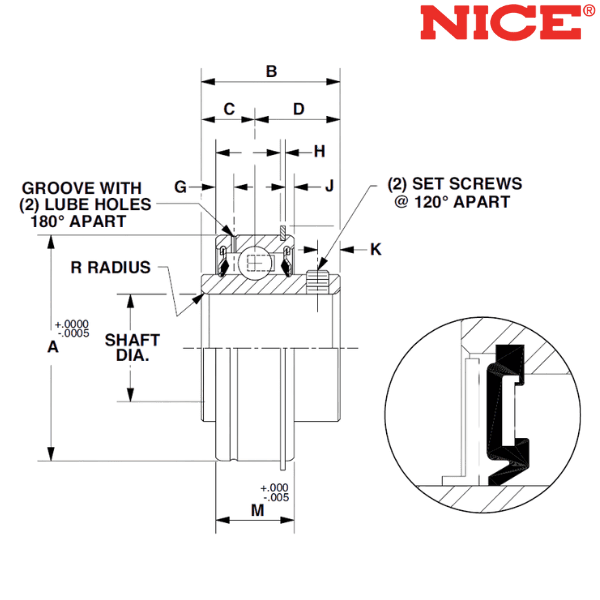

Principal Dimensions & Load Ratings (Imperial) :
Shaft Diameter - 1.25 inch
Outer Diameter (A) - 2.835 (+.0000 to -.0005) inch
Width (B) - 1.688 (+.005 to -.005) inch
Width (C) - 0.688 inch
Width (D) - 1 inch
Width (G) - 0.219 inch
Width (H) - 0.065 (+.005 to -.005) inch
Width (J) - 0.125 inch
Width (K) - 0.236 inch
Width (M) - 0.938 (+.000 to -.005) inch
Radius (r) - 0.04 inch
2 Set Screws - 5/16-24
Basic Dynamic Load Rating (C) - 5755 lbf
Basic Static Load Rating (C0) - 3450 lbf
Weight (W) - 0.93 lbs

Principal Dimensions & Load Ratings (Metric) :
Outer Diameter (A) - 72 (+.000 to -.013) mm
Width (B) - 42.86 (+.13 to -.13) mm
Width (C) - 17.48 mm
Width (D) - 25.4 mm
Width (G) - 5.56 mm
Width (H) - 1.65 (+.13 to -.13) mm
Width (J) - 3.18 mm
Width (K) - 5.99 mm
Width (M) - 23.83 (+.00 to -.13) mm
Radius (r) - 1.02 mm
Basic Dynamic Load Rating (C) - 25610 N
Basic Static Load Rating (C0) - 15353 N
Weight (W) - 0.42 kg

Some features about this bearing :
• Heavy Duty Seal with Steal trash guard
• Two Lubrication holes allow for regreasing
• Two Knurled Cup point set screws offer excellent resistance to loosening under vibratory conditions
• Fully ground, SAE 52100 chrome alloy steel races

♦ ♦ Images are for representation purposes only
