Description

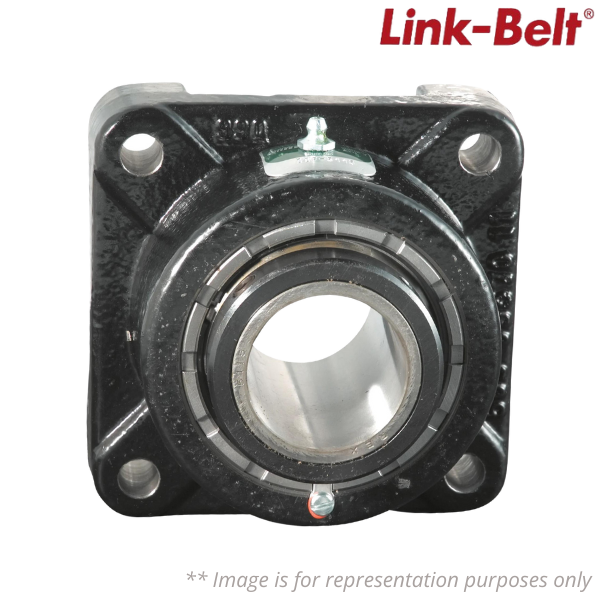

Brand - Link-Belt
Item Number - EFB22535E Link-Belt
Category - Flange Blocks Spherical Roller Bearing
UPC - 793699507522
Material - 10412678
Model - EFB22500
Bore Size (in) - 2.1875 in
Clearance - C0 STANDARD
Fixed vs. Expansion - Fixed
Housing Construction - Solid
Housing Material - Cast Iron
Housing Style - Flange Block
Housing Type - Flange, Four Bolt
Locking Type - Double Set Collar
Retainer Material - Steel
Seal Type - Heavy Contact Seal
Available End Cap - B436DTC
Available Seal Type - E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal
Bearing Brand - LINK-BELT ROLLER SOLID HOUSED
Bolt Hole Circle Diameter (in) - 6 57/64 in
Bolt Size (in) - 2.1875 in
Bore Length (in) - 4 1/8 in
Distance Between Bolt Holes (in) - 4 7/8 in
Distance from Mounting Surface to Cap Face (in) - 4 5/8 in
Distance from Mounting Surface to Outer Most Bearing Face (in) - 4 1/4 in
Grease Fitting Thread Size - 1/8 NPT
Height - 6.88
Housing Coating - POWDER COATED
Insert - B535L
Length - 6.88
Locking Collar Outside Diameter (in) - 3 1/4 in
Locking Device Kit - B436SC QTY 2
Lubrication Type - EXXON RONEX MP STD
Maximum Speed (RPM) - 1950 rpm
Maximum Temperature (C) - 107 C
Microlock Kit - B436MLK
Mounting Bolt Size (in) - 5/8 in
Mounting Housing Width (in) - 1 9/16 in
Mounting Pad Width (in) - 8 9/32 in
Weight (kg) - 7.257472
Primary Seal - BUNA SPRING LOADED LIP SEAL
Radial Dynamic Load Capacity (lb) - 32500 lb
Radial Static Load Capacity (lb) - 44400 lb
Seal Kit - B436ES
Setscrew Torque (in-lbs) - 460 in/lbs
Size Code - B536
Standoff Distance (in) - 1/8 in
Unit of Dimension - IN
Vibration Frequency Fundamental Train - 0.0072 cps
Vibration Frequency Inner Ring Defect - 0.1790 cps
Vibration Frequency Outer Ring Defect - 0.1377 cps
Vibration Frequency Roller Spin - 0.0606 cps
Volume - 0.998
Volume Unit - GLL
Width - 4.88
