EE726182TD/726287 TIMKEN

Brand - TIMKEN
Item Number - EE726182TD/726287 TIMKEN
Also KNown As - EE726182TD - 726287
Category - Double Row Tapered Roller Bearing (TDIT Type)

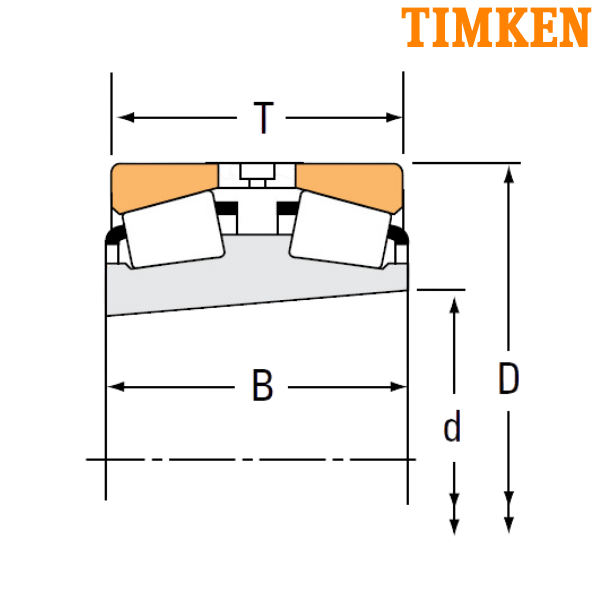

Bore Diameter (d) mm - 457.2
Bore Diameter (d) inch - 18
Taper - 0.05
Outer Diameter (D) mm - 730.148
Outer Diameter (D) inch - 28.746
Width (T) mm - 330.2
Width (T) inch - 13
Double Inner Ring Width (B) mm - 330.2
Double Inner Ring Width (B) inch - 13
Dynamic Load Rating (C1) N - 7050000
Dynamic Load Rating (C1) lbf - 1580000
Factor (e) - 0.29
Factor (Y1) - 2.29
Factor (Y2) - 3.42
Dynamic Radial Rating (90 million revolutions) (C90) N - 1050000
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 236000
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 529000
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 119000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 1830000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 411000
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.98

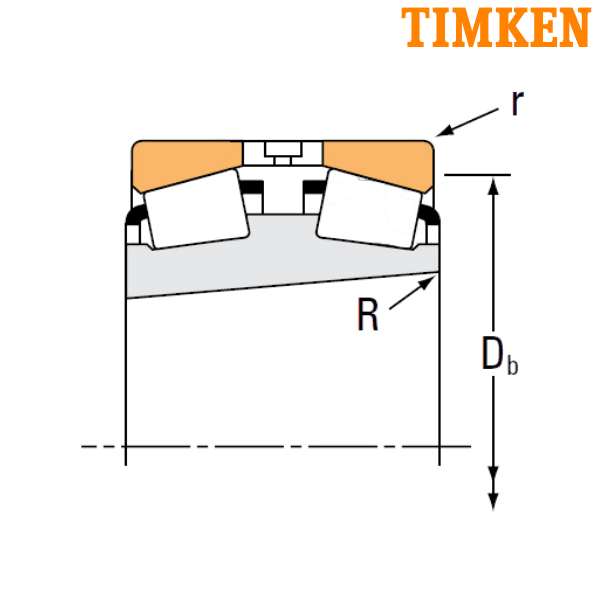

Maximum Shaft Fillet Radius (R) mm - 6.4
Maximum Shaft Fillet Radius (R) inch - 0.25
Maximum Housing Fillet Radius (r) mm - 6.4
Maximum Housing Fillet Radius (r) inch - 0.25
Cup Backface Backing Diameter (Db) mm - 674.9
Cup Backface Backing Diameter (Db) inch - 26.57
Geometry Factor (G1) - 7359.2
Geometry Factor (G2) - 384.7
Geometry Factor (Cg) - 0.2413
Weight (kg) - 517.73
Weight (lbs) - 1141.38
Inner Part Number - EE726182TD
Outer Part Number - 726287
TDIT - Double Inner-Ring Bearing with a Tapered Bore

** Images are for representation purposes only
