EE690296D/690465 TIMKEN

Brand - TIMKEN
Item Number - EE690296D/690465 TIMKEN
Also Known As - EE690296D - 690465

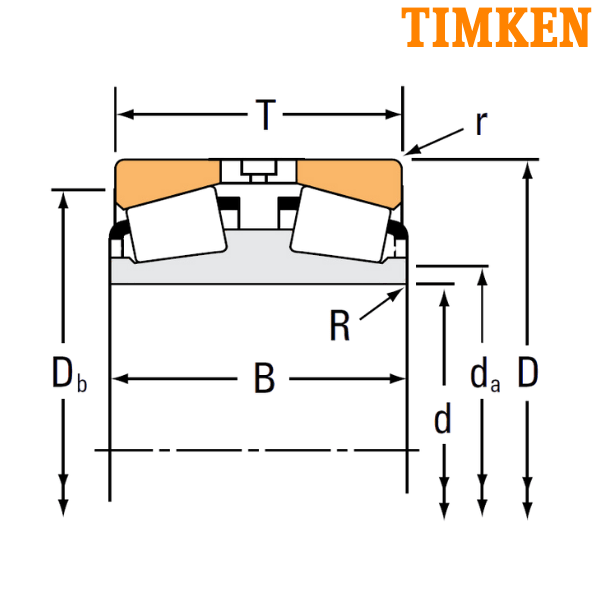

Category - Double Row Tapered Roller Bearing (TDI Type)
Bore Diameter (d) mm - 749.3
Bore Diameter (d) inch - 29.5
Outer Diameter (D) mm - 1181.1
Outer Diameter (D) inch - 46.5
Bearing Width across Cups (T) mm - 355.6
Bearing Width across Cups (T) inch - 14
Double Cone Width (B) mm - 355.6
Double Cone Width (B) inch - 14
Dynamic Radial Rating (Two-Row, 1 million revolutions) (C1) N - 13000000
Dynamic Radial Rating (Two-Row, 1 million revolutions) (C1) lbf - 2920000
Factor (e) - 0.4
Factor (Y1) - 1.8
Factor (Y2) - 2.7
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) N - 1930000
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) lbf - 434000
Dynamic Thrust Rating (90 million revolutions) (Ca90) N - 1240000
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbf - 278000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 3360000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 756000
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.56
Maximum Shaft Fillet Radius (R) mm - 6.4
Maximum Shaft Fillet Radius (R) inch - 0.25
Cone Frontface Backing Diameter (da) mm - 813
Cone Frontface Backing Diameter (da) inch - 32.01
Maximum Housing Fillet Radius (r) mm - 12.7
Maximum Housing Fillet Radius (r) inch - 0.5
Cup Backface Backing Diameter (Db) mm - 1085
Cup Backface Backing Diameter (Db) inch - 42.72
Geometry Factor (G1) - 19196.6
Geometry Factor (G2) - 776.6
Geometry Factor (Cg) - 0.3569
Weight (kg) - 1449.65
Weight (lbs) - 3195.93
Inner Part Number - EE690296D
Outer Part Number - 690465
TDI - Double Inner Ring

** Images are for representation purposes only
