EE234157D/234220 TIMKEN

Brand - TIMKEN
Item Number - EE234157D/234220 TIMKEN
Also Known As - EE234157D - 234220
Category - Double Row Tapered Roller Bearing (TDI Type)
Bore Diameter (d) mm - 393.7
Bore Diameter (d) inch - 15.5
Outer Diameter (D) mm - 558.8
Outer Diameter (D) inch - 22
Bearing Width across Cups (T) mm - 119.062
Bearing Width across Cups (T) inch - 4.6875
Double Cone Width (B) mm - 120.65
Double Cone Width (B) inch - 4.75
Dynamic Radial Rating (Two-Row, 1 million revolutions) (C1) N - 1890000
Dynamic Radial Rating (Two-Row, 1 million revolutions) (C1) lbf - 425000
Factor (e) - 0.5
Factor (Y1) - 1.4
Factor (Y2) - 2.1
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) N - 282000
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) lbf - 63300
Dynamic Thrust Rating (90 million revolutions) (Ca90) N - 230000
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbf - 51600
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 490000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 110000
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.23
Maximum Shaft Fillet Radius (R) mm - 3.3
Maximum Shaft Fillet Radius (R) inch - 0.13
Cone Frontface Backing Diameter (da) mm - 420
Cone Frontface Backing Diameter (da) inch - 16.54
Maximum Housing Fillet Radius (r) mm - 6.4
Maximum Housing Fillet Radius (r) inch - 0.25
Cup Backface Backing Diameter (Db) mm - 516
Cup Backface Backing Diameter (Db) inch - 20.31
Geometry Factor (G1) - 2782.9
Geometry Factor (G2) - 448.6
Geometry Factor (Cg) - 0.2018
Weight (kg) - 95.27
Weight (lbs) - 210.04
Inner Part Number - EE234157D
Outer Part Number - 234220
TDI - Double Inner Ring

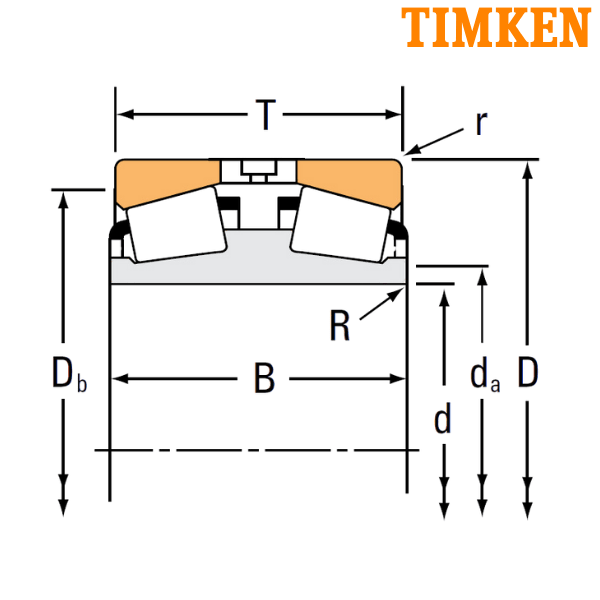

** Images are for representation purposes only
