Description
Brand - ZEN
Item Number - E9 ZEN
Category - Magneto Bearings
Inner Diameter (d) mm - 9
Outer Diameter (D) mm - 28
Width (C) mm - 8
rs (mm) - 0.3
r1s (mm) - 0.15
Dynamic Load Ratng (N) - 4430
Static Load Rating (N) - 740
Limiting Speed (rpm) - 26000
Weight (kg) - 0.023
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Cage Material - H62

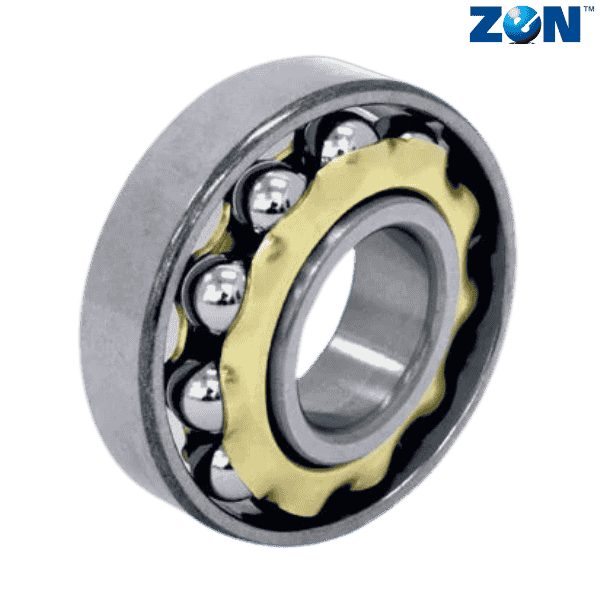

** Images are for representation purposes only
