Description
Brand - ZEN
Item Number - E4 ZEN
Category - Magneto Bearings
Inner Diameter (d) mm - 4
Outer Diameter (D) mm - 16
Width (C) mm - 5
rs (mm) - 0.15
r1s (mm) - 0.1
Dynamic Load Ratng (N) - 1620
Static Load Rating (N) - 260
Limiting Speed (rpm) - 33000
Weight (kg) - 0.005
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Cage Material - H62

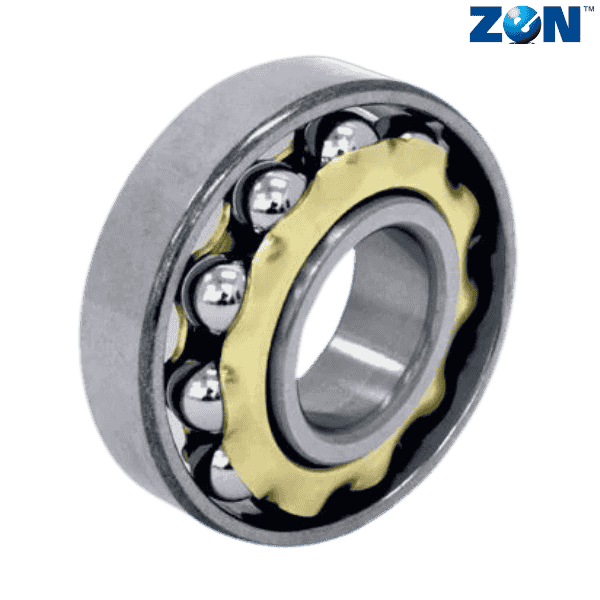

** Images are for representation purposes only
