Description
Brand - ZEN
Item Number - E20 ZEN
Category - Magneto Bearings
Inner Diameter (d) mm - 20
Outer Diameter (D) mm - 47
Width (C) mm - 12
rs (mm) - 1
r1s (mm) - 0.6
Dynamic Load Ratng (N) - 9200
Static Load Rating (N) - 2080
Limiting Speed (rpm) - 14000
Weight (kg) - 0.089
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Cage Material - H62

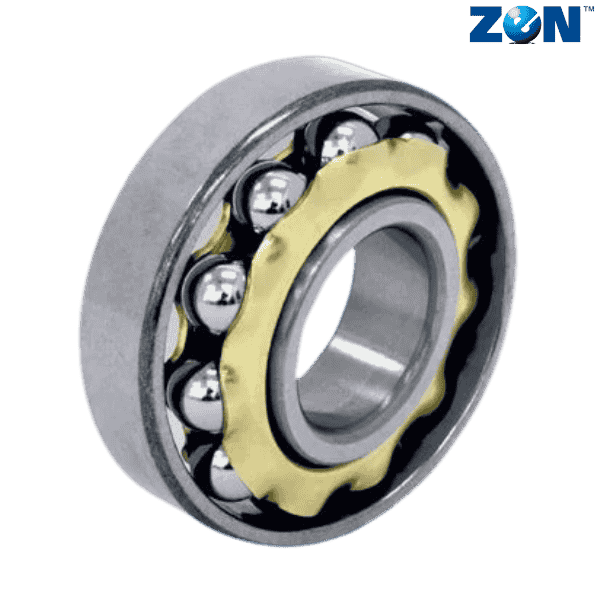

** Images are for representation purposes only
