Description
Brand - ZEN
Item Number - E19 ZEN
Category - Magneto Bearings
Inner Diameter (d) mm - 19
Outer Diameter (D) mm - 40
Width (C) mm - 9
rs (mm) - 0.6
r1s (mm) - 0.2
Dynamic Load Ratng (N) - 5050
Static Load Rating (N) - 1030
Limiting Speed (rpm) - 17000
Weight (kg) - 0.049
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Cage Material - H62

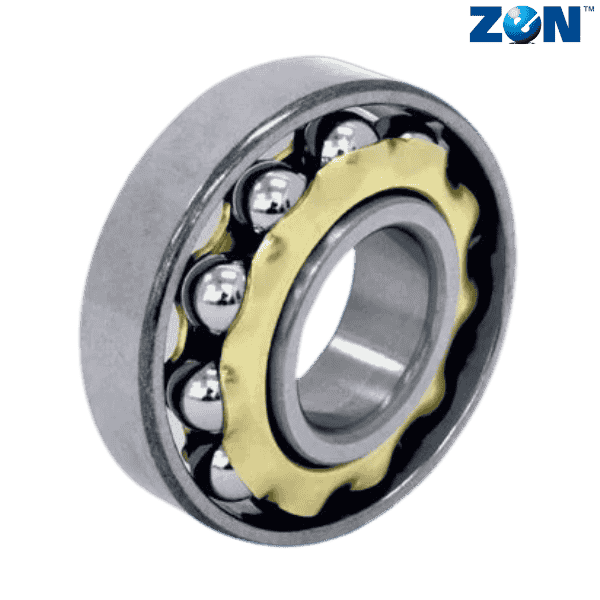

** Images are for representation purposes only
