Description
Brand - ZEN
Item Number - E12 ZEN
Category - Magneto Bearings
Inner Diameter (d) mm - 12
Outer Diameter (D) mm - 32
Width (C) mm - 7
rs (mm) - 0.3
r1s (mm) - 0.15
Dynamic Load Ratng (N) - 4400
Static Load Rating (N) - 845
Limiting Speed (rpm) - 22000
Weight (kg) - 0.028
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Cage Material - H62

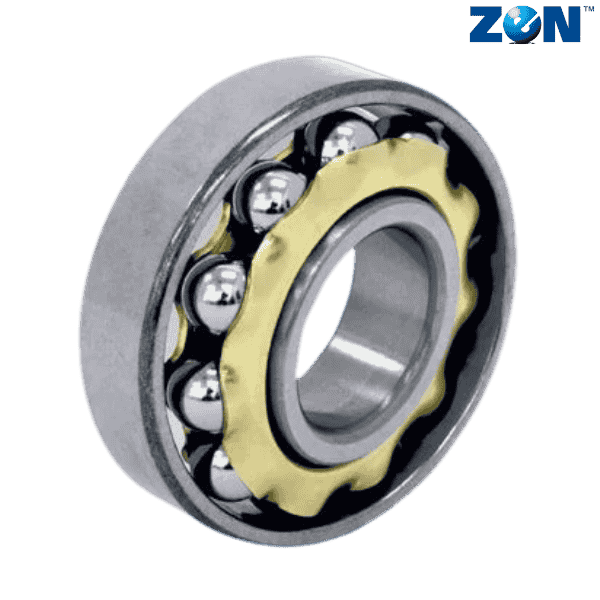

** Images are for representation purposes only
