Description
Brand - NILOS
Item Number - E 20 JVG NILOS
Category - NILOS-RING for Single Row Magneto Bearing

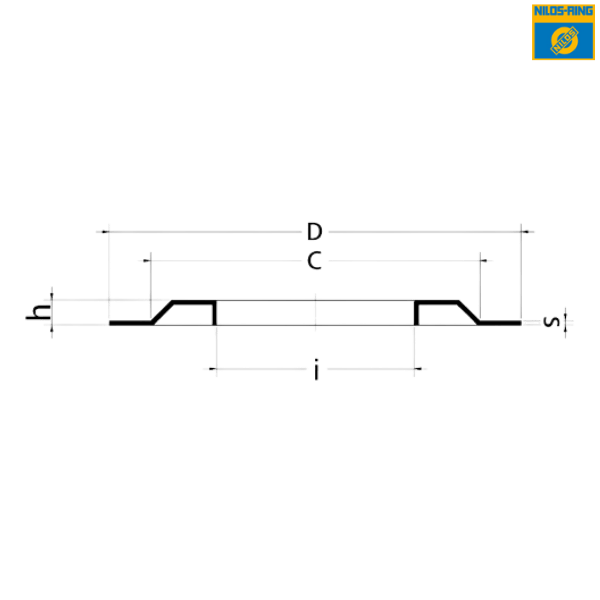

Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (i) - 24 mm
Dimension (c) - 37 mm
Outer Diamter (D) - 47 mm
Width (h) - 2 mm
Material Thickness (s) - 0.3 mm

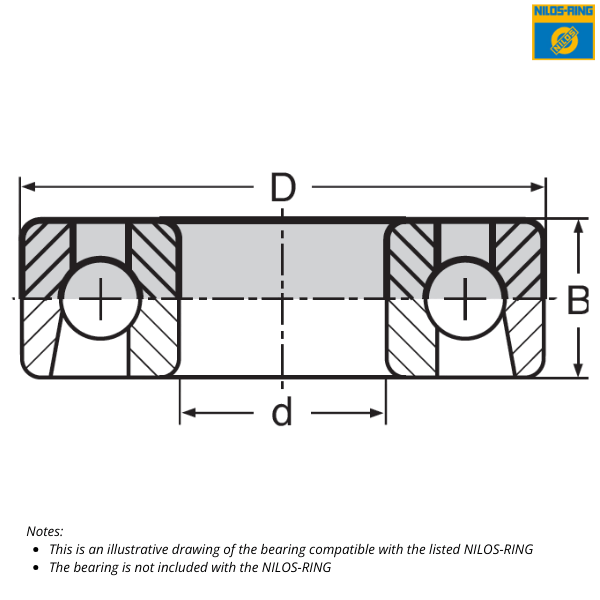

Description of Compatible Bearing (E Series Side G) :
Bearing Part Number - E 20
Bearing Type - Double Row Self-Aligning Ball Bearing
Inner Diameter (d) - 20 mm
Outer Diameter (D) - 47 mm
Width (B) - 12 mm
♦ ♦ Images are for representation purposes only
