Description
Brand - NILOS
Item Number - E 15 JVG NILOS
Category - NILOS-RING for Single Row Magneto Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (i) - 18.6 mm
Dimension (c) - 27 mm
Outer Diamter (D) - 35 mm
Width (h) - 2 mm
Material Thickness (s) - 0.3 mm

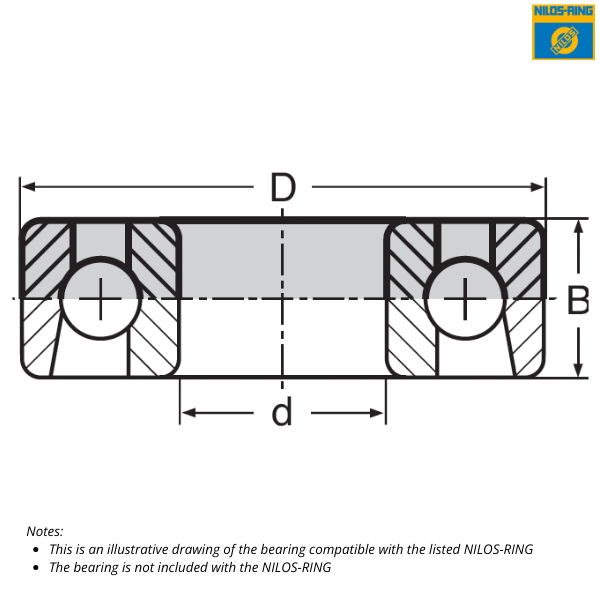

Description of Compatible Bearing (E Series Side G) :
Bearing Part Number - E 15
Bearing Type - Double Row Self-Aligning Ball Bearing
Inner Diameter (d) - 15 mm
Outer Diameter (D) - 35 mm
Width (B) - 8 mm
♦ ♦ Images are for representation purposes only
Item Number - E 15 JVG NILOS
Category - NILOS-RING for Single Row Magneto Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (i) - 18.6 mm
Dimension (c) - 27 mm
Outer Diamter (D) - 35 mm
Width (h) - 2 mm
Material Thickness (s) - 0.3 mm
Description of Compatible Bearing (E Series Side G) :
Bearing Part Number - E 15
Bearing Type - Double Row Self-Aligning Ball Bearing
Inner Diameter (d) - 15 mm
Outer Diameter (D) - 35 mm
Width (B) - 8 mm
♦ ♦ Images are for representation purposes only
