Description
Brand - NILOS
Item Number - E 10 AVG NILOS
Category - NILOS-RING for Single Row Magneto Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 10 mm
Outer Diameter (a) - 25.2 mm
Dimension (C) - 17 mm
Widtth (h) - 1.8 mm
Material Thickness (s) - 0.3 mm

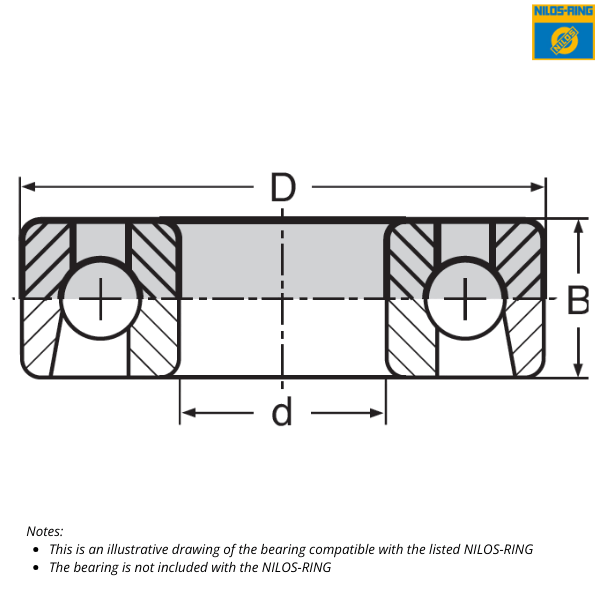

Description of Compatible Bearing (E Series Side G) :
Bearing Part Number - E 10
Bearing Type - Single Row Magneto Bearing
Inner Diameter (d) - 10 mm
Outer Diameter (D) - 28 mm
Width (B) - 8 mm
♦♦ Images are for representation purposes only
Item Number - E 10 AVG NILOS
Category - NILOS-RING for Single Row Magneto Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 10 mm
Outer Diameter (a) - 25.2 mm
Dimension (C) - 17 mm
Widtth (h) - 1.8 mm
Material Thickness (s) - 0.3 mm
Description of Compatible Bearing (E Series Side G) :
Bearing Part Number - E 10
Bearing Type - Single Row Magneto Bearing
Inner Diameter (d) - 10 mm
Outer Diameter (D) - 28 mm
Width (B) - 8 mm
♦♦ Images are for representation purposes only
