Description
Brand - Link-Belt

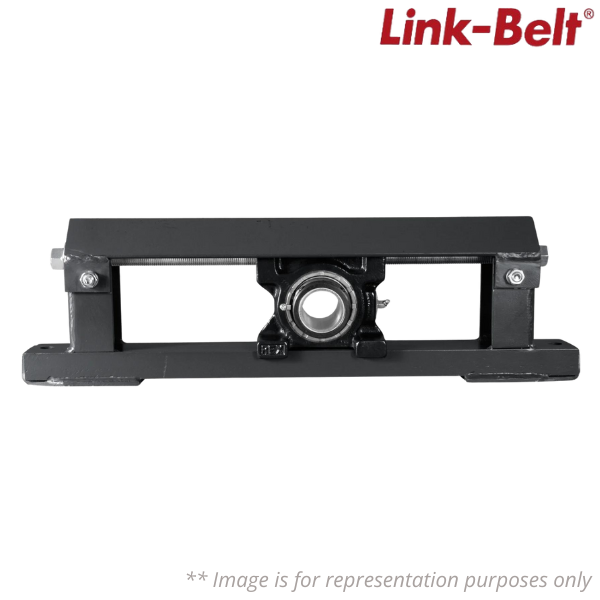

Item Number - DSB22455H24 Link-Belt
Category - Take-up Assemblies Spherical Roller Bearings
UPC - 662327021962
Material - 10423925
Model - DSB22400XX
Bore Size (in) - 3.4375 in
Clearance - C0 STANDARD
Fixed vs. Expansion - Fixed
Housing Construction - Solid
Housing Material - Cast Iron
Housing Style - Take-Up Assembly
Housing Type - Take-Up Assembly
Locking Type - Single Set Collar
Retainer Material - Steel
Seal Type - Labyrinth Seal
Available End Cap - B456DTC
Available Seal Type - E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal
Base to Centerline Height (in) - 5 5/8 in
Bolt Size (in) - 3.4375 in
Distance from Bearing Centerline to Cap Face (in) - 3 in
Distance from Bearing Centerline to Housing Face (in) - 1 23/32 in
Distance from Bearing Centerline to Outer Most Bearing Face (in) - 2 21/32 in
Frame - ZNT1024
Frame Bolt Hole Spacing (in) - 44 in
Frame Bolt Hole Spacing in Width Direction (in) - 2 in
Frame Height (in) - 11 13/16 in
Frame Length (in) - 46 1/4 in
Frame Material - Welded Steel
Frame Type - Protected Screw Take-up Assembly
Frame Width (in) - 4 in
Grease Fitting Thread Size - 1/8 NPT
Housing Coating - POWDER COATED
Housing Width (in) - 5 5/8 in
Insert - B455L
Locking Collar Outside Diameter (in) - 4 29/32 in
Locking Device Kit - B456SC
Lubrication Type - EXXON RONEX MP STD
Maximum Speed (RPM) - 1650 rpm
Maximum Temperature (C) - 107 C
Maximum Temperature (F) - 225 F
Microlock Kit - B580MLK
Mounting Bolt Size (in) - 3/4 in
Mounting Pad Height (in) - 2 in
Weight (kg) - 56.699
Primary Seal - STEEL CLEARANCE SEAL
Radial Dynamic Load Capacity (lb) - 62300 lb
Radial Static Load Capacity (lb) - 90700 lb
Seal Kit - B456HS
Setscrew Torque (in-lbs) - 680 in/lbs
Size Code - B456
Take-up Block - DSB22455H
Take-Up Block and Bearing - DSB22455H
Take-up Frame Assembly Type - Conveyor Take-Up Hinged Top
Travel Length (in) - 24 in
Vibration Frequency Fundamental Train - 0.0073 cps
Vibration Frequency Inner Ring Defect - 0.1784 cps
Vibration Frequency Outer Ring Defect - 0.1383 cps
Vibration Frequency Roller Spin - 0.0628 cps
