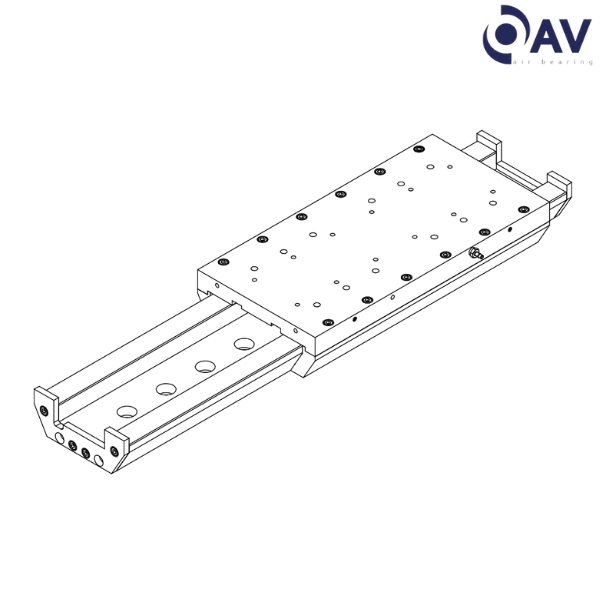

Description
Brand - OAV
Item Number - DOV150300 OAV
Category - Dovetail Rail Guide
Imperial :
Flatness (inch) - 0.00002
Carriage Weight (lb) - 5.8
Total Weight (lb) - 8.5 (200 mm travel)
Z direction Load (lb) - 704
Y direction Load (lb) - 608
Roll (lbs-in) - 990
Pitch (lbs-in) - 950
Yaw (lbs-in) - 396
Metric :
Flatness (mm) - 0.0005
Local Straightness as per 25 mm travel (µm) - 0.25
Maximum Error as per 1000 mm travel (µm) - 2
Carriage Size (mm) - 150 x 300
Travel (mm) - 50/100/200/300 or Custom Travel
Guidebar Length (mm) - Custom
Assembly Height (mm) - 55
Carriage Weight (kg) - 2.6
Total Weight (kg) - 3.89 (200 mm travel)
Z direction Load (N) - 3130
Y direction Load (N) - 2704
Air Flow (NLPM) - 23
Pitch (N-m) - 107
Roll (N-m) - 112
Yaw (N-m) - 45
Y Stiffness (N/μ) - 1609
Z Stiffness (N/μ) - 2176

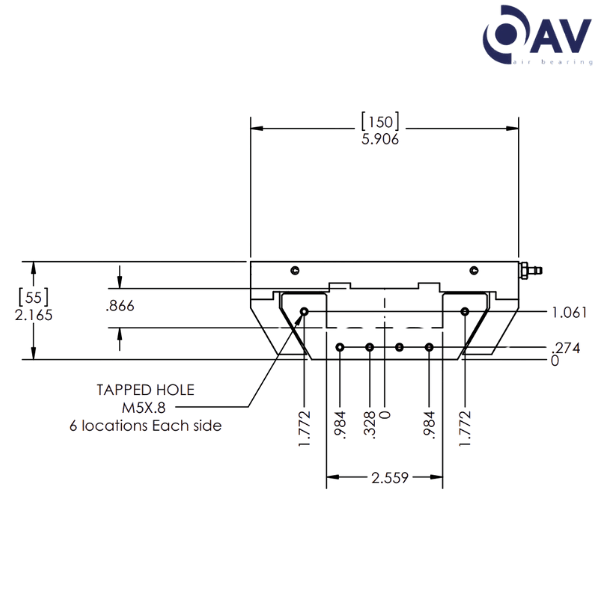

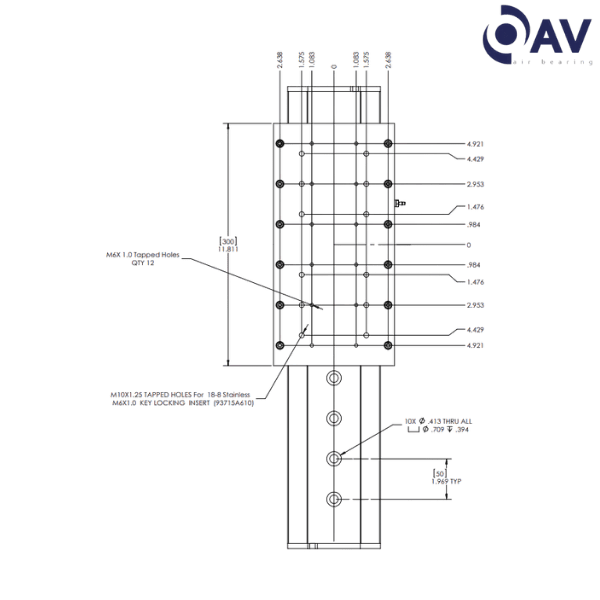

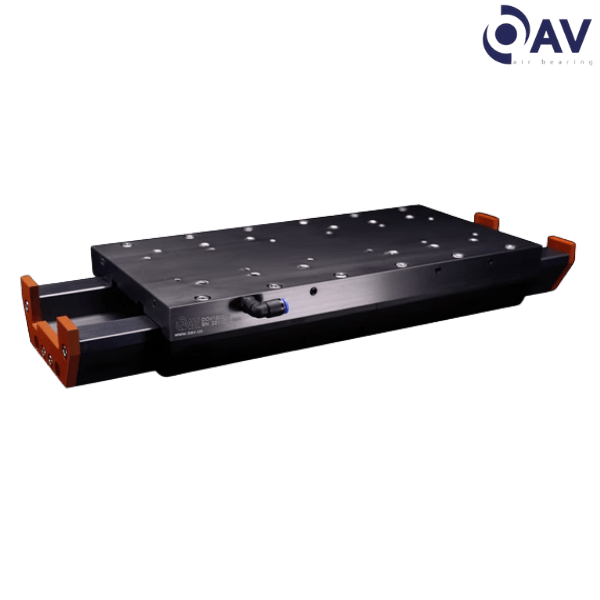

** Images are for representation purposes only
