Description
Brand - OAV
Item Number - DOV150150 OAV
Category - Dovetail Rail Guide
Imperial :
Flatness (inch) - 0.00002
Carriage Weight (lb) - 2.9
Total Weight (lb) - 4.2 (100 mm travel)
Z direction Load (lb) - 352
Y direction Load (lb) - 304
Roll (lbs-in) - 324
Pitch (lbs-in) - 285
Yaw (lbs-in) - 140
Metric :
Flatness (mm) - 0.0005
Local Straightness as per 25 mm travel (µm) - 0.25
Maximum Error as per 1000 mm travel (µm) - 2

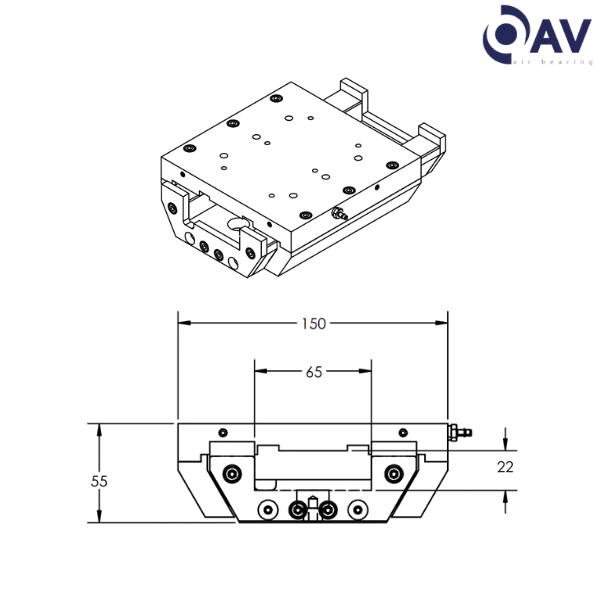

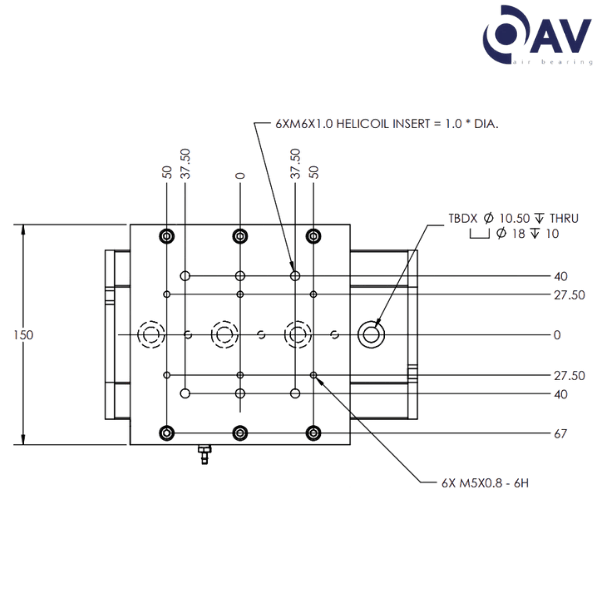

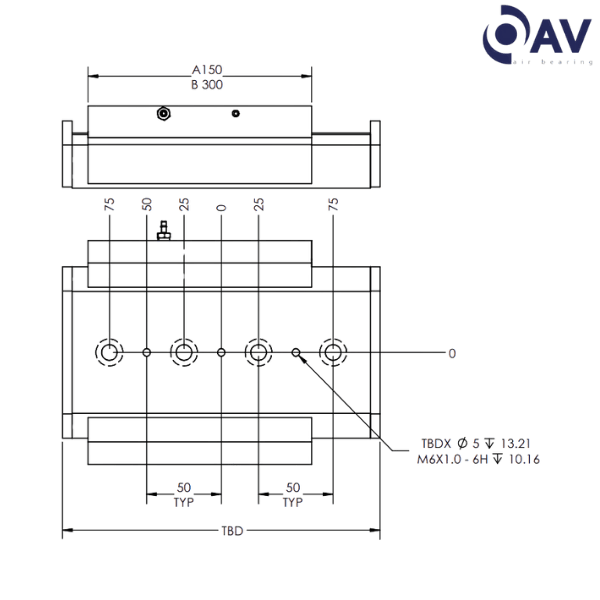

Carriage Size (mm) - 150 x 150
Travel (mm) - 50/100/200/300 or Custom Travel
Guidebar Length (mm) - Custom
Assembly Height (mm) - 55
Carriage Weight (kg) - 1.3
Total Weight (kg) - 1.95 (100 mm travel)
Z direction Load (N) - 1565
Y direction Load (N) - 1352
Air Flow (NLPM) - 17
Pitch (N-m) - 32
Roll (N-m) - 37
Yaw (N-m) - 16
Y Stiffness (N/μ) - 670
Z Stiffness (N/μ) - 730

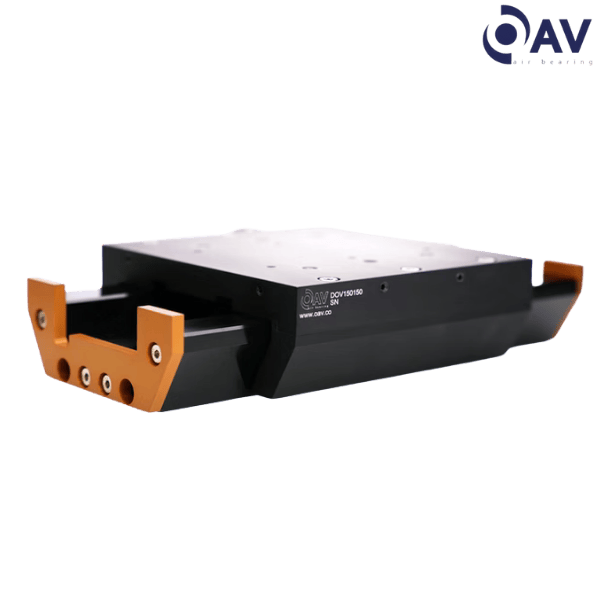

** Images are for representation purposes only
