DODGE - WSTU-VSC-45M


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - DODGE - WSTU-VSC-45M
Category - Setscrew VSC Ball Bearings (VSC Intermediate Duty Wide Slot Take-Up Bearings)
Series - 209
Shaft Size (mm) - 45
Description - WSTU-VSC-45M
Weight (kg) - 2.76
Take-Up Frame Number Reference - WS400

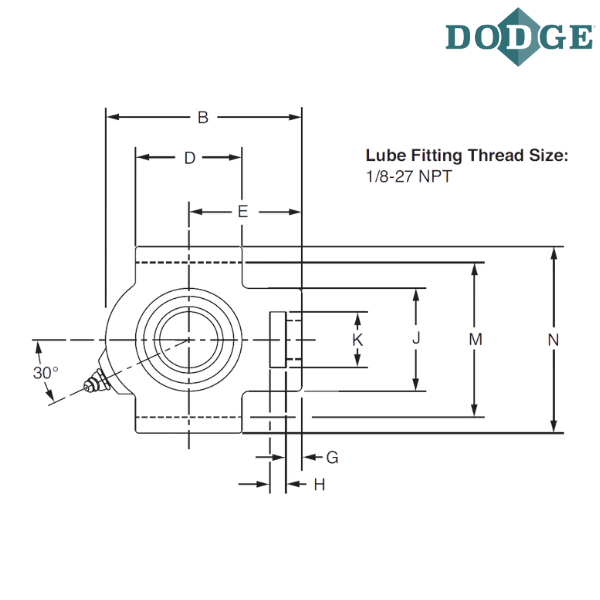

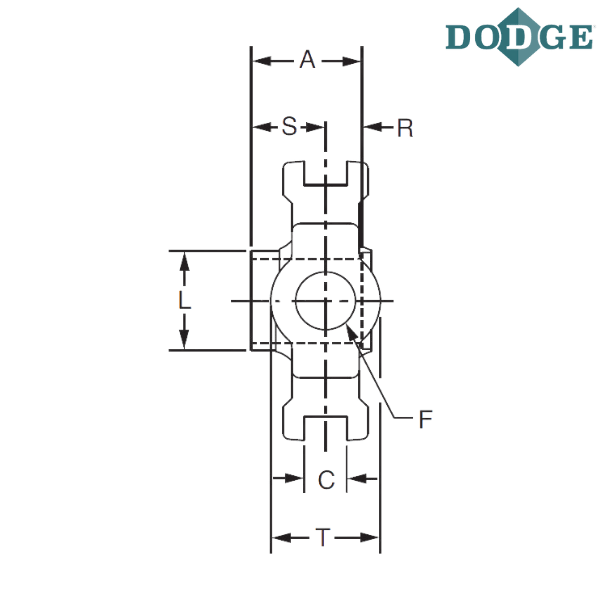

Length Through Bore (A) mm - 49.3
Overall Length (B) mm - 143
C (mm) - 17.48
D (mm) - 82.6
E (mm) - 87.4
F (Screw Diameter) mm - 25.4
G (mm) - 16
H (mm) - 19.1
J (mm) - 82.6
K (mm) - 49.3
L (mm) - 56.4
M (mm) - 101.22/101.98
Overall Width (N) mm - 120.7
R (mm) - 19.1
S (mm) - 30.2
T (mm) - 49.3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
M - Metric

** Images are for representation purposes only
