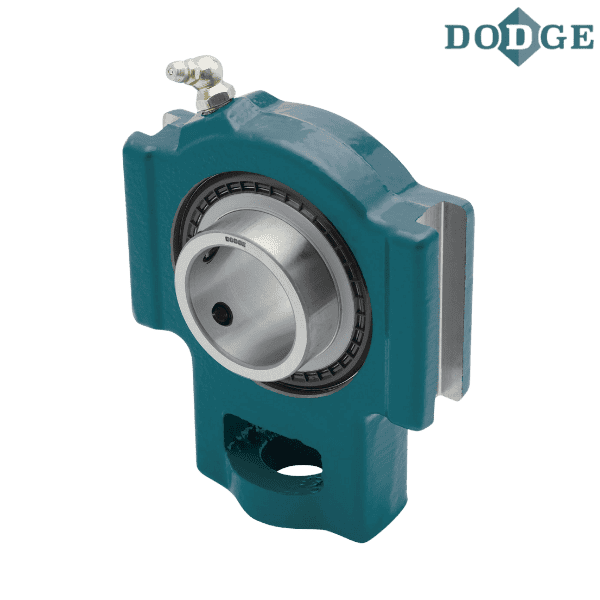

DODGE - WSTU-SCED-110


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - DODGE - WSTU-SCED-110
Category - Extreme Duty Setscrew Ball Bearings (SCED Normal Duty Wide Solt Take-Up Bearings)
Series - 208
Shaft Size (inch) - 1.625
Description - WSTU-SCED-110
Weight (lbs) - 6
Take-Up Frame Size - WS400

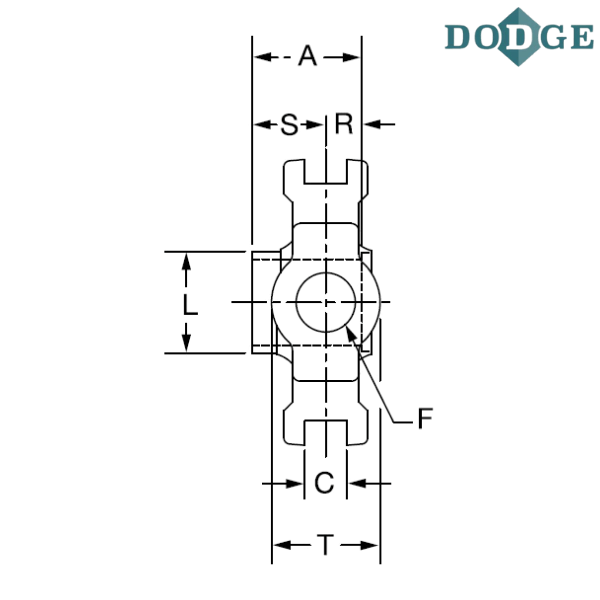

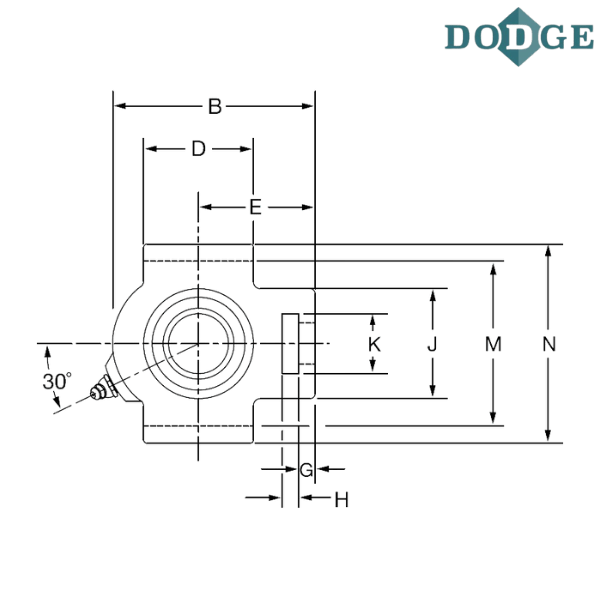

Length Through Bore (A) inch - 1.94
Overall Length (B) inch - 5.69
Thickness (C) inch - 0.688
D (inch) - 3.25
E (inch) - 3.5
F (Screw Diameter) inch - 1
G (inch) - 0.63
H (inch) - 0.75
J (inch) - 3.25
K (inch) - 1.94
L (inch) - 2.05
M (inch) - 3.985/4.015
Overall Width (N) inch - 4.5
R (inch) - 0.75
S (inch) - 1.19
T (inch) - 1.94
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
SCED - Extreme duty

** Images are for representation purposes only
