Description
Brand - DODGE
Item Number - DODGE - WSTU-SCED-010
Category - Extreme Duty Setscrew Ball Bearings (SCED Normal Duty Wide Solt Take-Up Bearings)
Series - 204
Shaft Size (inch) - 0.625
Description - WSTU-SCED-010
Weight (lbs) - 2
Take-Up Frame Size - WS300

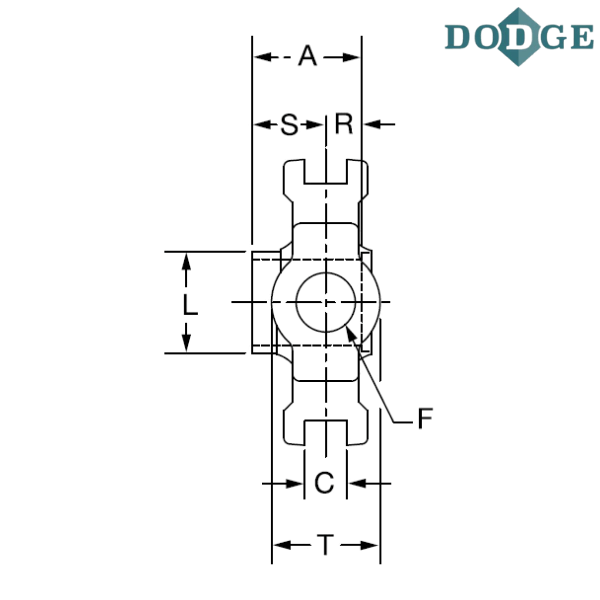

Length Through Bore (A) inch - 1.23

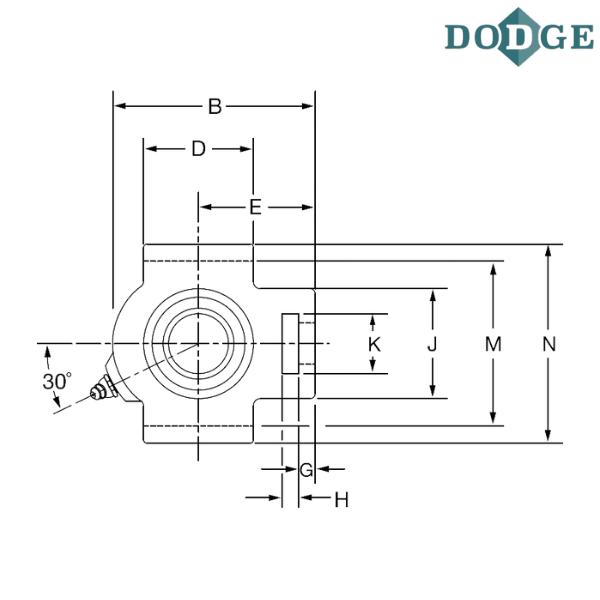

Overall Length (B) inch - 3.69
Thickness (C) inch - 0.531
D (inch) - 2
E (inch) - 2.38
F (Screw Diameter) inch - 0.625
G (inch) - 0.38
H (inch) - 0.63
J (inch) - 2
K (inch) - 1.25
L (inch) - 1.12
M (inch) - 2.985/3.015
Overall Width (N) inch - 3.63
R (inch) - 0.5
S (inch) - 0.73
T (inch) - 1.38
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
WSTU - Wide slot take-up
SCED - Extreme duty

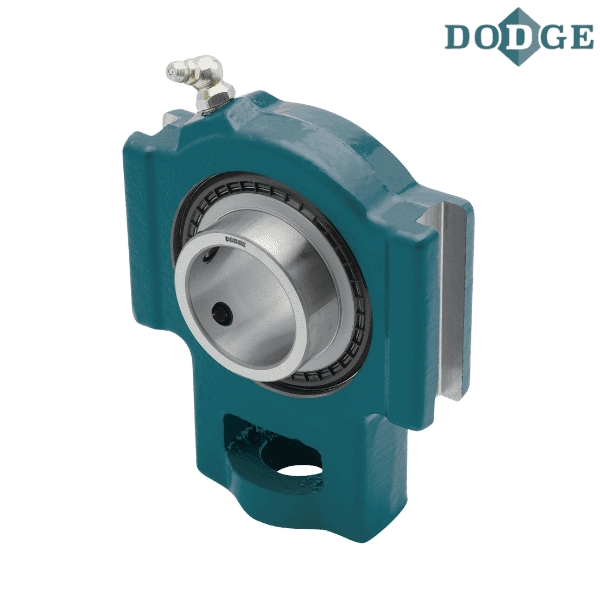

** Images are for representation purposes only
