Description
Brand - DODGE
Item Number - DODGE - WSTU-DLM-112
Category - D-LOK® Ball Bearings (DLM Medium Duty Wide Slot Take-Up Bearings)
Series - 210
Shaft Size (inch) - 1.75
Description - WSTU-DLM-112
Weight (lbs) - 7.6
Take- Up Frame Size - WS400

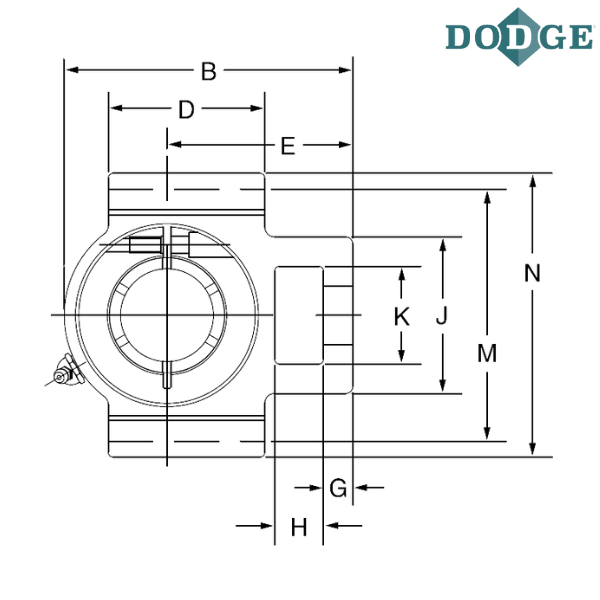

Length Through Bore (A) mm - 51.1
Overall Length (B) mm - 147.8
C (mm) - 17.48
D (mm) - 85.9
E (mm) - 90.4
F (Screw Diameter) mm - 25.4
G (mm) - 16
H (mm) - 19.1
J (mm) - 82.6
K (mm) - 49.3
L (mm) - 82.3
M (mm) - 101.22/101.98
Overall Width (N) mm - 120.7
R (mm) - 19.1
S (mm) - 32
T (mm) - 49.3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
WSTU - Wide slot take-up
DLM - Wide inner ring, medium duty, concentric clamp collar

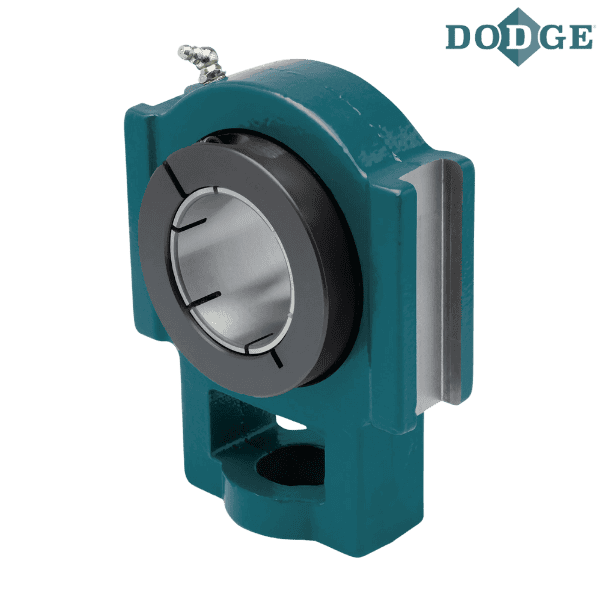

** Images are for representation purposes only
