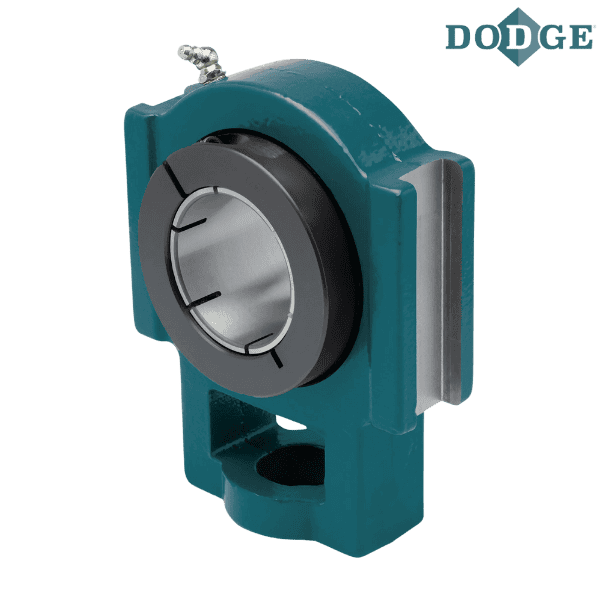

DODGE - WSTU-DL-60M


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - DODGE - WSTU-DL-60M
Category - D-LOK® Ball Bearings (DL Normal Duty Wide Slot Take-Up Bearings)
Series - 212
Shaft Size (mm) - 60
Description - WSTU-DL-60M
Weight (kg) - 4.9
Take- Up Frame Size - WS502

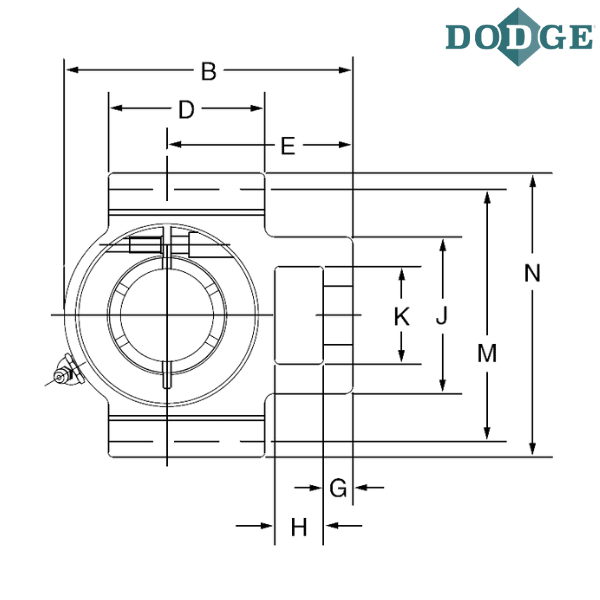

Length Through Bore (A) mm - 60.5
Overall Length (B) mm - 190.5
C (mm) - 27
D (mm) - 101.6
E (mm) - 119.1
F (Screw Diameter) mm - 31.8
G (mm) - 19.1
H (mm) - 31.8
J (mm) - 101.6
K (mm) - 63.5
L (mm) - 104.4
M (mm) - 129.79/130.56
Overall Width (N) mm - 149.4
R (mm) - 22.9
S (mm) - 37.6
T (mm) - 63.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
DL - Wide inner ring, normal duty, concentric clamp collar
M - Metric

** Images are for representation purposes only
