Description
Brand - DODGE
Item Number - DODGE - WSTU-DL-55M
Category - D-LOK® Ball Bearings (DL Normal Duty Wide Slot Take-Up Bearings)
Series - 211
Shaft Size (mm) - 55
Description - WSTU-DL-55M
Weight (kg) - 4.5
Take- Up Frame Size - WS502

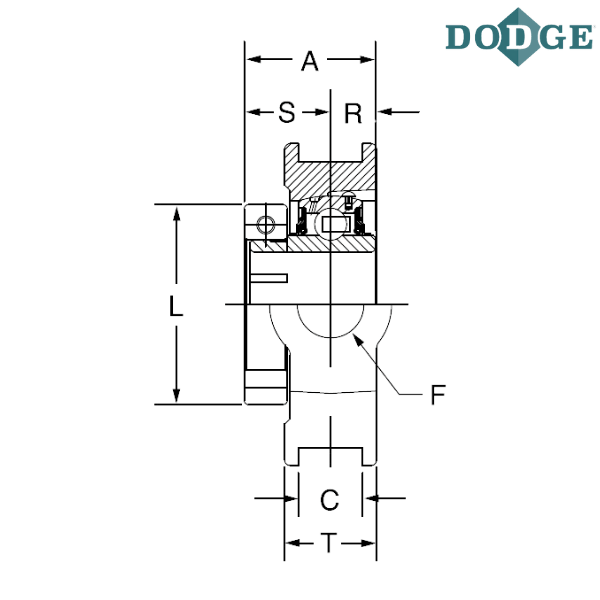

Length Through Bore (A) mm - 57.2

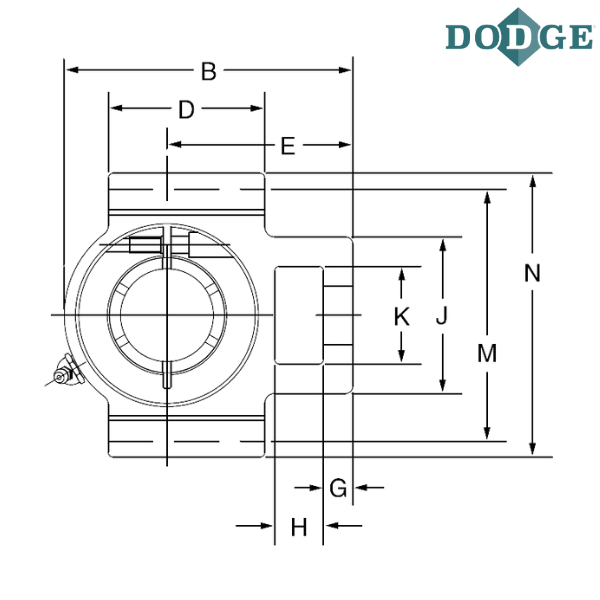

Overall Length (B) mm - 169.9
C (mm) - 27
D (mm) - 95.3
E (mm) - 106.4
F (Screw Diameter) mm - 31.8
G (mm) - 19.1
H (mm) - 25.4
J (mm) - 101.6
K (mm) - 63.5
L (mm) - 93.7
M (mm) - 129.79/130.56
Overall Width (N) mm - 149.4
R (mm) - 22.4
S (mm) - 34.8
T (mm) - 63.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
WSTU - Wide slot take-up
DL - Wide inner ring, normal duty, concentric clamp collar
M - Metric

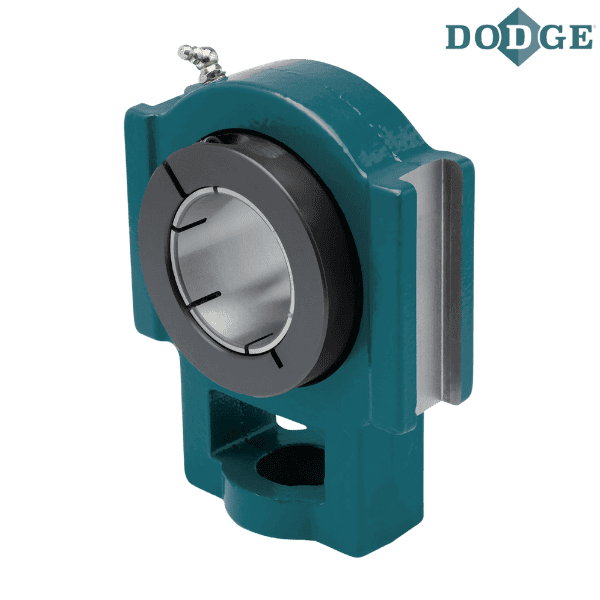

** Images are for representation purposes only
