DODGE - WSTU-DL-211


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - DODGE - WSTU-DL-211
Category - D-LOK® Ball Bearings (DL Normal Duty Wide Slot Take-Up Bearings)
Series - 214
Shaft Size (inch) - 2.6875
Description - WSTU-DL-211
Weight (lbs) - 17.8
Take- Up Frame Size - WS515

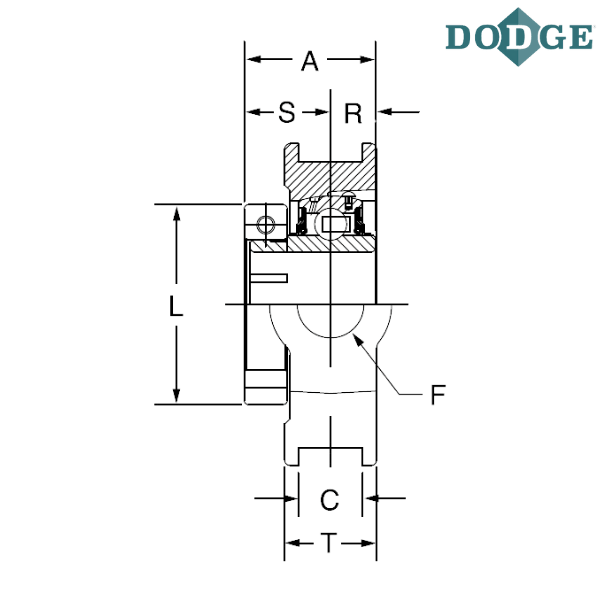

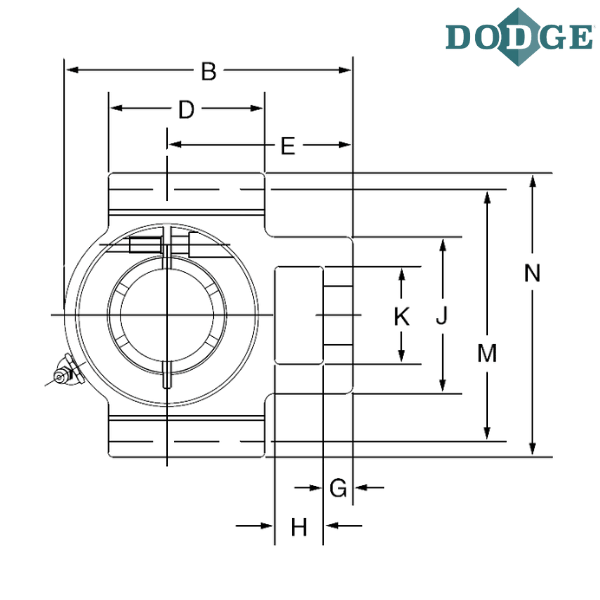

Length Through Bore (A) inch - 2.6
Overall Length (B) inch - 8.56
C (inch) - 1.063
D (inch) - 4.75
E (inch) - 5.38
F (Screw Diameter) inch - 1.5
G (inch) - 0.81
H (inch) - 1.25
J (inch) - 4.38
K (inch) - 2.75
L (inch) - 4.38
M (inch) - 5.923/5.953
Overall Width (N) inch - 6.56
R (inch) - 1.06
S (inch) - 1.54
T (inch) - 2.75
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
DL - Wide inner ring, normal duty, concentric clamp collar

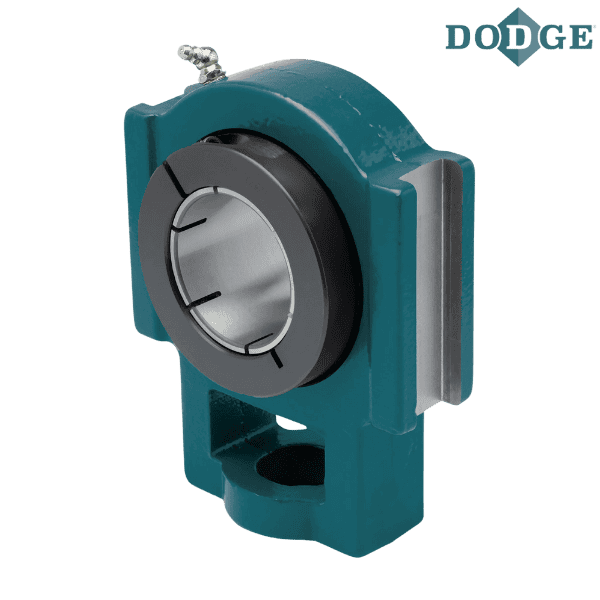

** Images are for representation purposes only
