Description
Brand - DODGE
Item Number - DODGE - TP-G-211
Category - Setscrew Ball Bearings (Type G Normal Duty Top Angle Take-Up Bearings)
Series - 214
Shaft Size (inch) - 2.7333
Description - TP-G-211
Weight (lbs) - 21.1
Frame Size - TP40

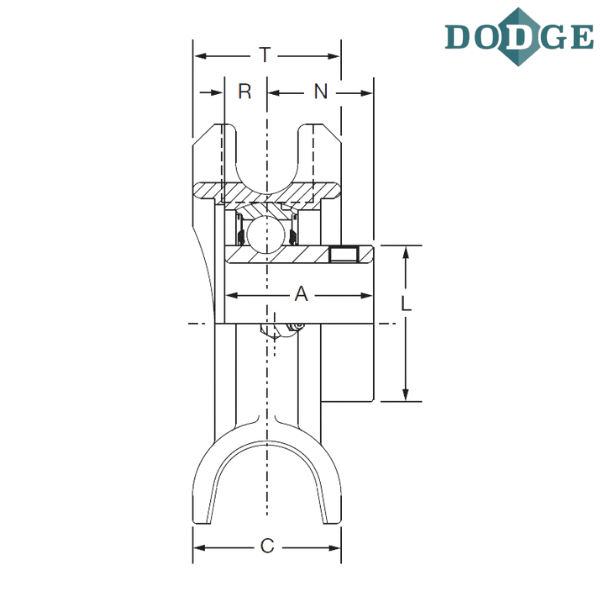

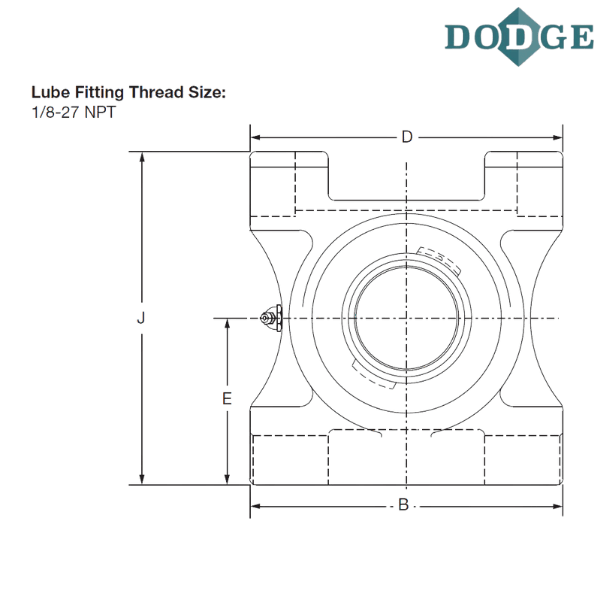

Length Through Bore (A) inch - 2.54
B (inch) - 8.50
C (inch) - 2.50
D (inch) - 8.00
E (inch) - 4.00
J (inch) - 8.31
L (inch) - 3.31
N (inch) - 1.38
R (inch) - 1.16
T (inch) - 2.75
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
TP - Top angle take-up

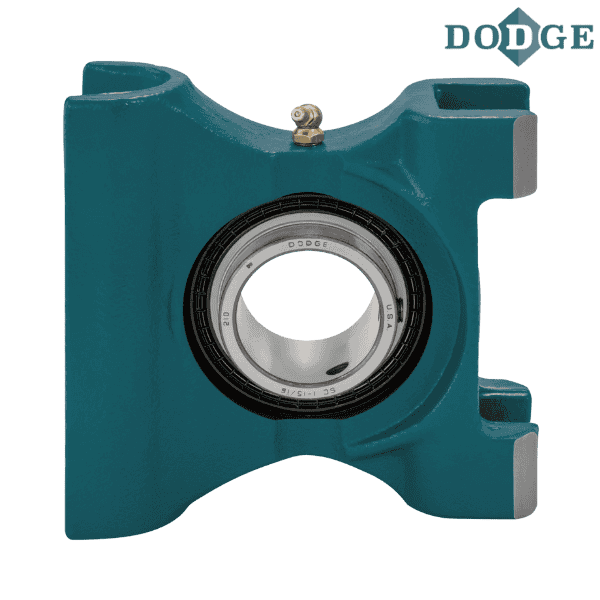

** Images are for representation purposes only
