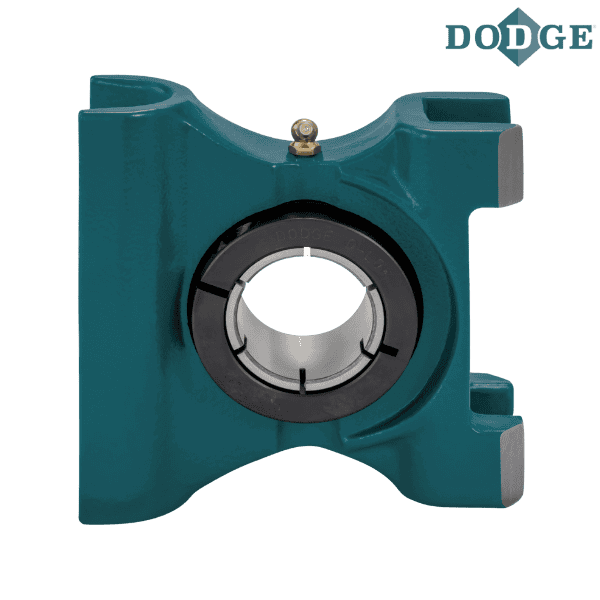

DODGE - TP-DLM-307


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - DODGE - TP-DLM-307
Category - D-LOK® Ball Bearings (DL Normal Duty Top Angle Take-Up Bearings)
Series - 218
Shaft Size (inch) - 3.4375
Description - TP-DLM-307
Weight (lbs) - 41.4
Take-Up Frame Size - TP50

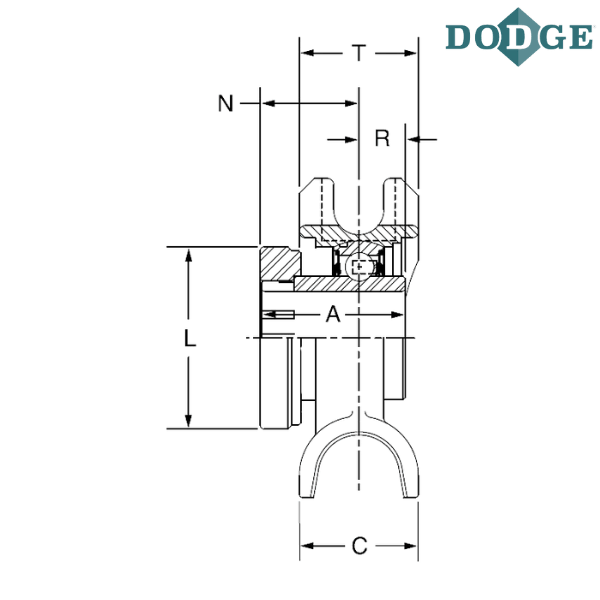

Length Through Bore (A) inch - 2.72
Length Through Bore (A) mm - 69.1

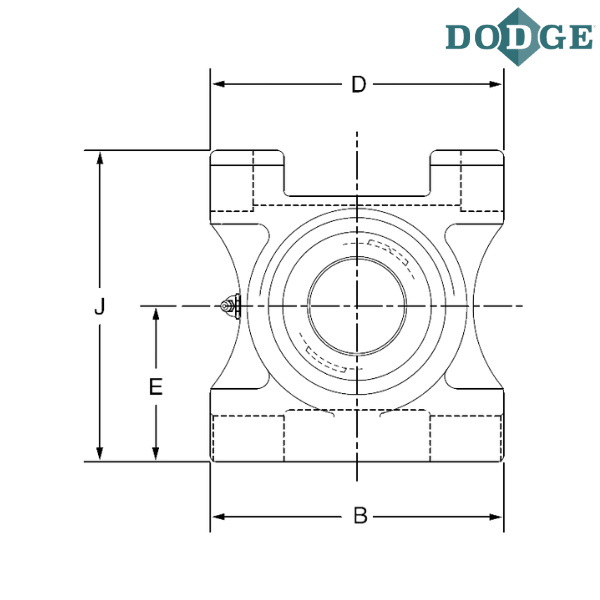

Overall Length (B) inch - 11
Overall Length (B) mm - 279.4
C (inch) - 3.13
C (mm) - 79.5
D (inch) - 10.5
D (mm) - 266.7
E (inch) - 5.5
E (mm) - 139.7
Overall Width (J) inch - 11
Overall Width (J) mm - 279.4
L (inch) - 5.49
L (mm) - 139.4
N (inch) - 1.8
N (mm) - 45.7
R (inch) - 0.92
R (mm) - 23.4
T (inch) - 3.13
T (mm) - 79.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TP - Top angle take-up
DLM - Wide inner ring, medium duty, concentric clamp collar

** Images are for representation purposes only
