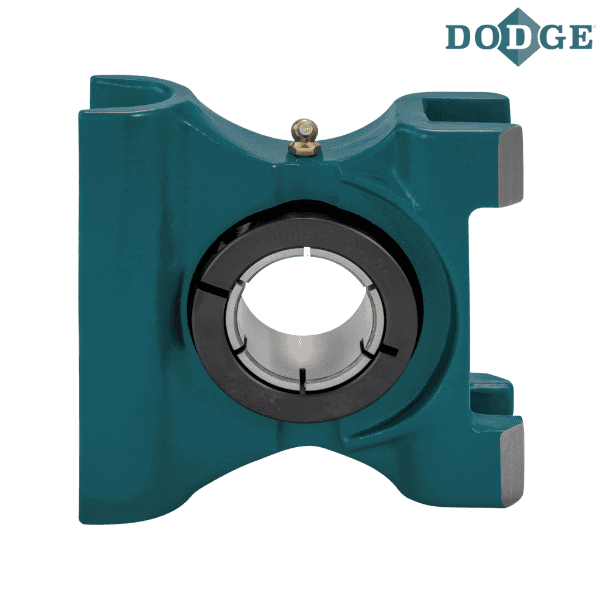

DODGE - TP-DLM-200


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - DODGE - TP-DLM-200
Category - D-LOK® Ball Bearings (DL Normal Duty Top Angle Take-Up Bearings)
Series - 211
Shaft Size (inch) - 2
Description - TP-DLM-200
Weight (lbs) - 13.7
Take-Up Frame Size - TP20

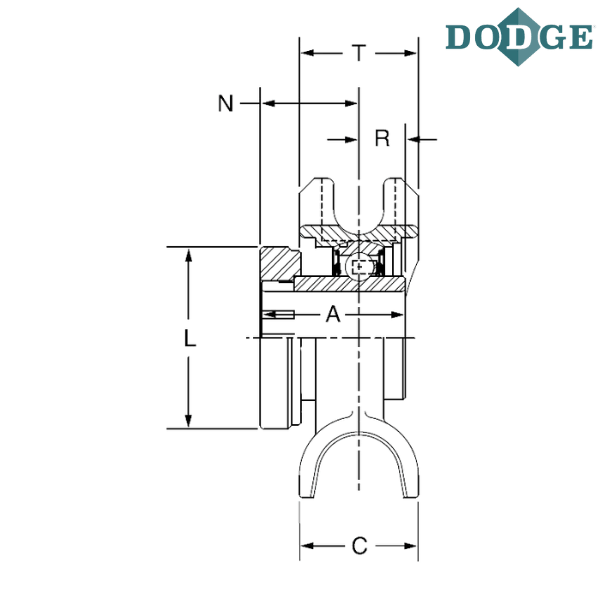

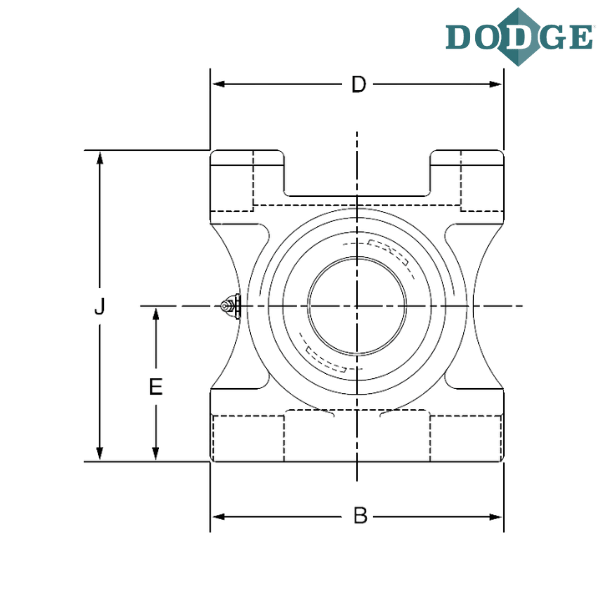

Length Through Bore (A) mm - 57.2
Overall Length (B) mm - 177.8
C (mm) - 63.5
D (mm) - 171.5
E (mm) - 85.9
Overall Width (J) mm - 200.2
L (mm) - 93.7
N (mm) - 34.8
R (mm) - 22.4
T (mm) - 60.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TP - Top angle take-up
DLM - Wide inner ring, medium duty, concentric clamp collar

** Images are for representation purposes only
