Description
Brand - DODGE
Item Number - DODGE - TB-SXV-55M
Category - Eccentric SXV Collar Ball Bearings (SXV Intermediate Duty Tapped Base Pillow Blocks)
Series - 211
Shaft Size (mm) - 55
Description - TB-SXV-55M
Weight (kg) - 3.3

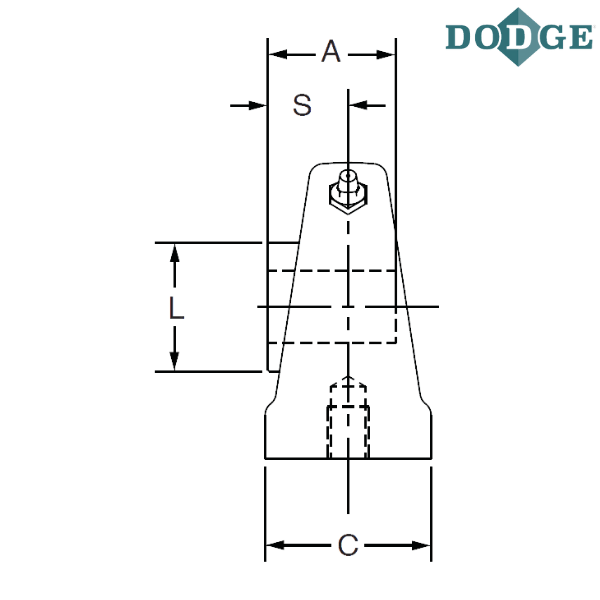

Length Through Bore (A) mm - 48.3

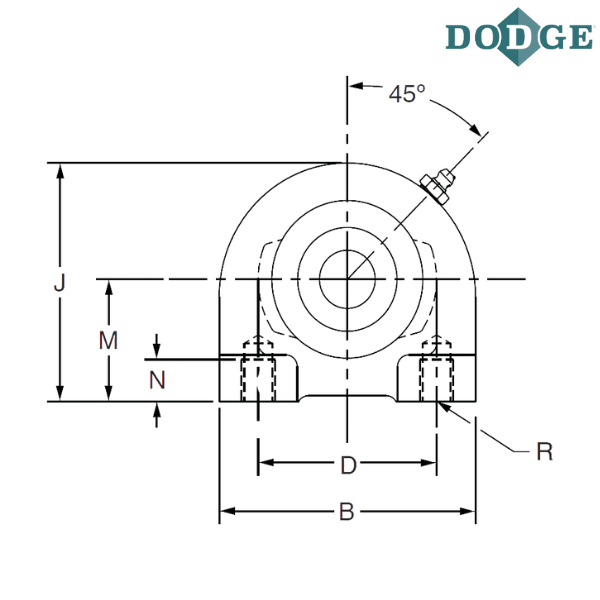

Overall Length (B) mm - 139.7
Width (C) mm - 50.8
Bolt Center to Center Length (D) mm - 101.6
Overall Height (J) mm - 117.6
L (mm) - 76.2
Base to Center Height (M) mm - 57.2
Minimum Tap Depth (N) mm - 22.4
Bolt Hole UNC-Thread (R) mm - M16x2
S (mm) - 36.4
Notes :
TB - Tapped base pillow block
SXV - Narrow inner ring, intermediate duty, eccentric locking collar
M - Metric

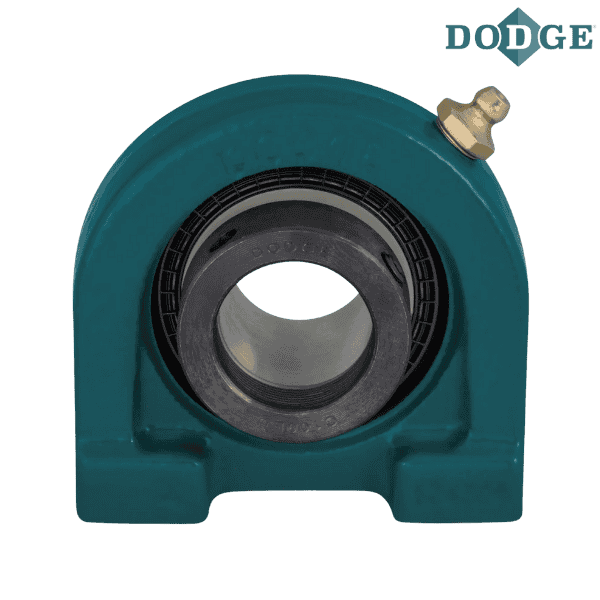

** Images are for representation purposes only
