Description
Brand - DODGE
Item Number - DODGE - TB-SXV-015
Category - Eccentric SXV Collar Ball Bearings (SXV Intermediate Duty Tapped Base Pillow Blocks)
Series - 205
Shaft Size (inch) - 0.9375
Description - TB-SXV-015
Weight (lbs) - 2.1

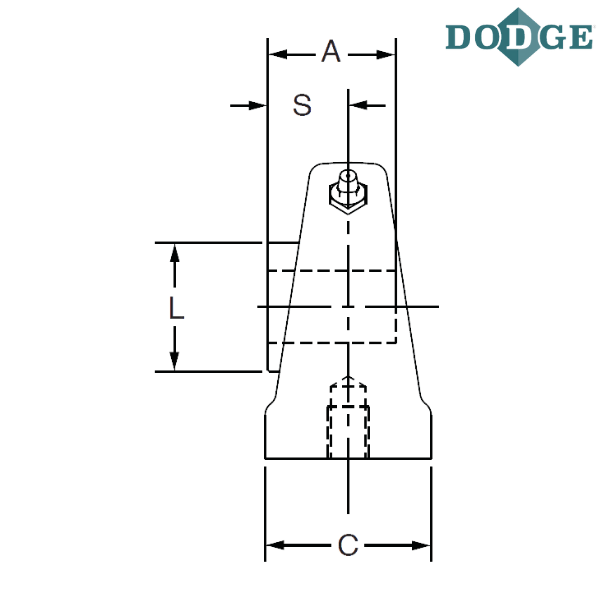

Length Through Bore (A) inch - 1.22

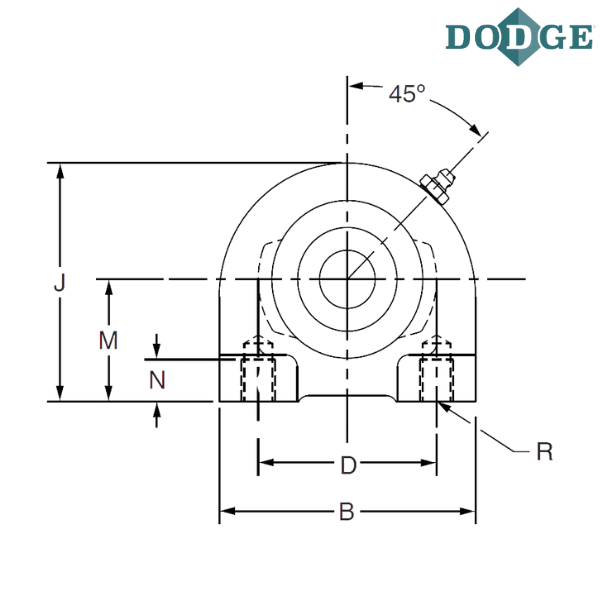

Overall Length (B) inch - 3
Width (C) inch - 1.5
Bolt Center to Center Length (D) inch - 2
Overall Height (J) inch - 2.81
L (inch) - 1.5
Base to Center Height (M) inch - 1.44
Minimum Tap Depth (N) inch - 0.5
Bolt Hole UNC-Thread (R) inch - 3/8-16
S (inch) - 0.92
Notes :
TB - Tapped base pillow block
SXV - Narrow inner ring, intermediate duty, eccentric locking collar

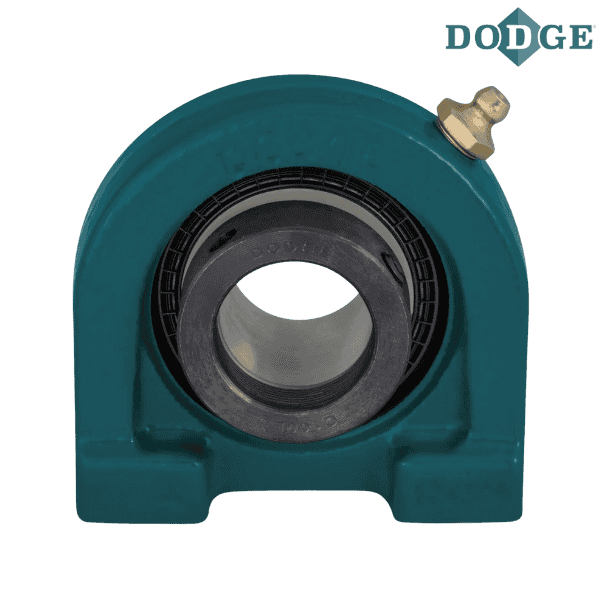

** Images are for representation purposes only
