Description
Brand - DODGE
Item Number - DODGE - TB-SXR-101
Category - Eccentric Collar Ball Bearings (SXR Normal Duty Tapped Base Pillow Blocks)
Series - 206
Shaft Size (inch) - 1.0625
Description - TB-SXR-101
Weight (lbs) - 3.2

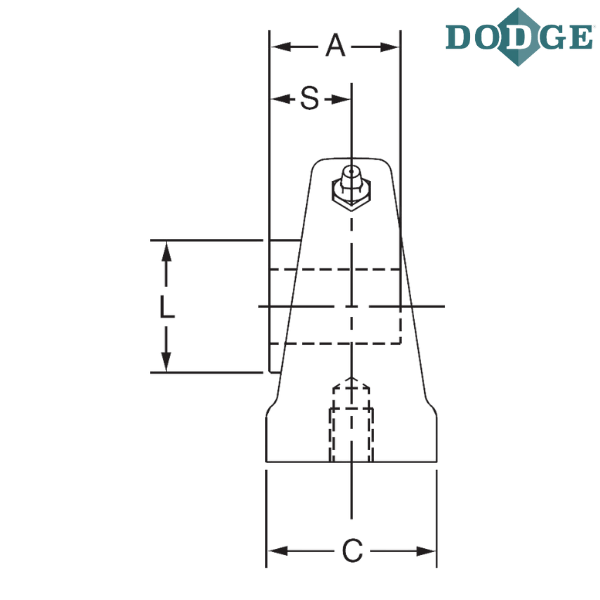

Length Through Bore (A) inch - 1.77

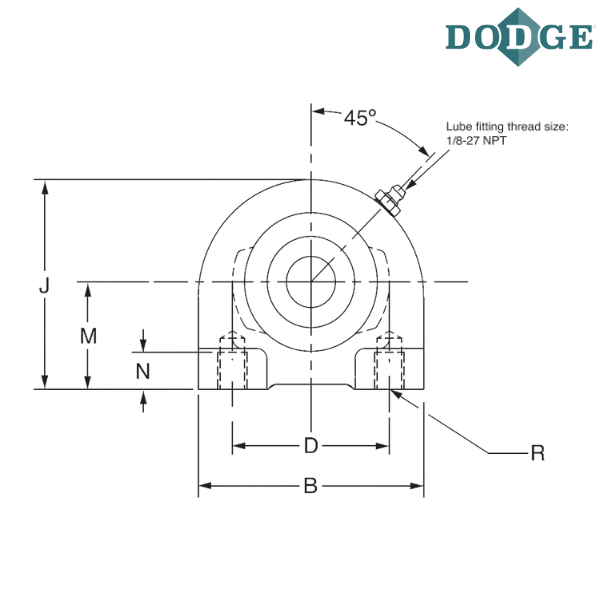

Overall Length (B) inch - 4
Width (C) inch - 1.5
Bolt Center to Center Length (D) inch - 3
Overall Height (J) inch - 3.38
L (inch) - 1.75
Base to Center Height (M) inch - 1.69
Minimum Tap Depth (N) inch - 0.63
Bolt Hole UNC-Thread (R) inch - 7/16-14
S (inch) - 1.19
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
TB - Tapped base pillow block
SXR - Wide inner ring, normal duty, Eccentric locking Collar
** Images are for representation purposes only
