Description
Brand - DODGE
Item Number - DODGE - TB-SCED-200L
Category - Extreme Duty Setscrew Ball Bearings (SCED Normal Duty Tapped Base Pillow Blocks)
Series - 211
Shaft Size (inch) - 2
Description - TB-SCED-200L
Weight (lbs) - 6.7

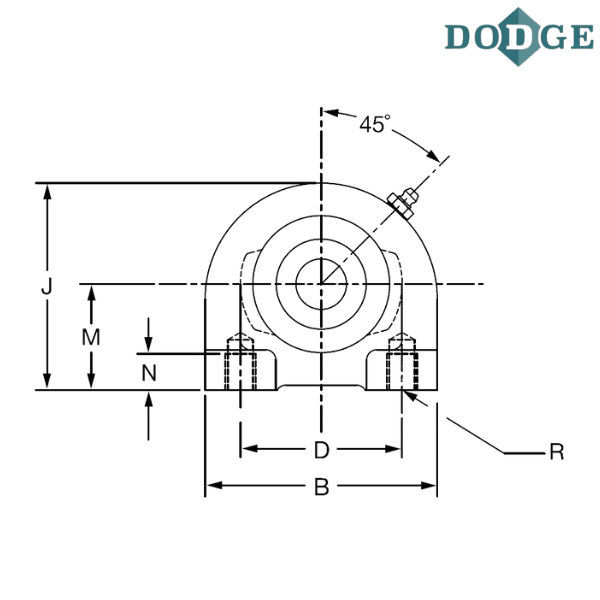

Length Through Bore (A) inch - 2.22
Overall Length (B) inch - 5.5
Overall Width (C) inch - 2
Bolt Center to Center Length (D) inch - 4
Overall Height (J) inch - 4.63
L (inch) - 2.71
Base to Center Height (M) inch - 2.25
N (inch) - 0.88
R (inch) - 0.625-11
S (inch) - 1.35
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
TB - Tapped base pillow block
SCED - Extreme duty
L - Next larger ring size

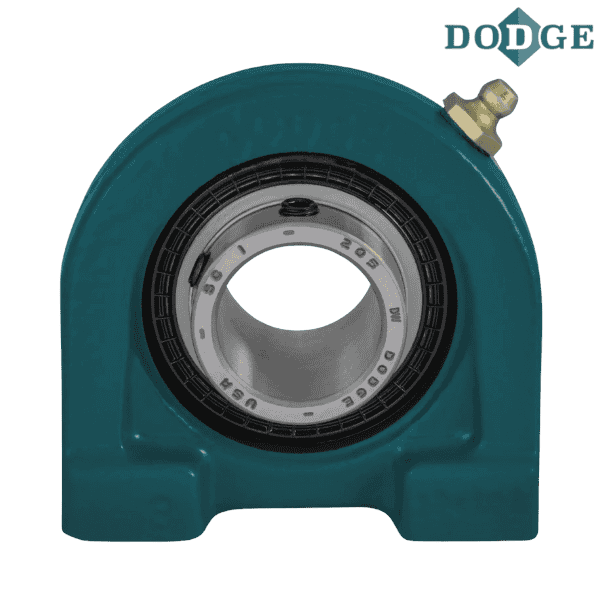

** Images are for representation purposes only
