Description
Brand - DODGE
Item Number - DODGE - TB-DL-45M
Category - D-LOK® Ball Bearings (DL Normal Duty Tapped Base Pillow Blocks)
Series - 209
Shaft Size (mm) - 45
Description - TB-DL-45M
Weight (kg) - 3.1

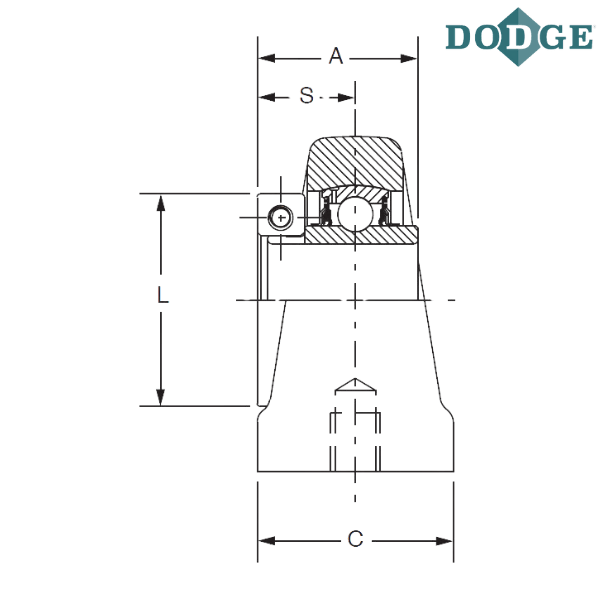

Length Through Bore (A) mm - 51.1
Overall Length (B) mm - 127
Width (C) mm - 50.8
Bolt Center to Center Length (D) mm - 95.3
Overall Height (J) mm - 108
L (mm) - 75.9
Base to Center Height (M) mm - 54
Minimum Tap Depth (N) mm - 19.1
Bolt Hole UNC-Thread (R) - M12x1.75
S (mm) - 32
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
TB - Tapped base pillow block
DL - Wide inner ring, normal duty, concentric clamp collar
M - Metric

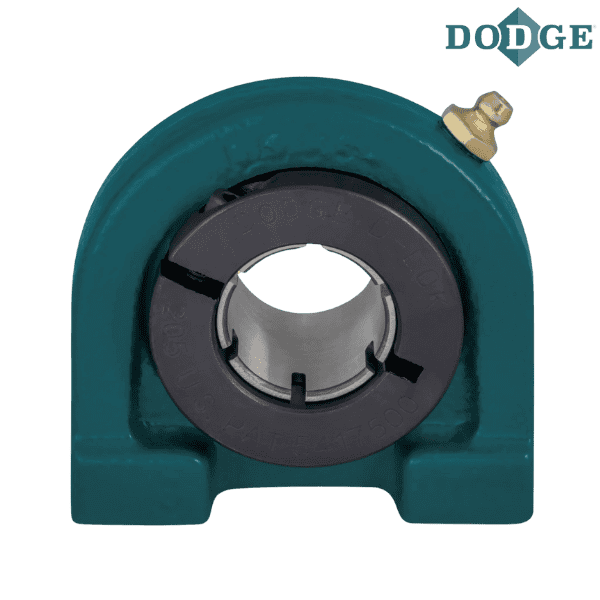

** Images are for representation purposes only
