Description
Brand - DODGE
Item Number - DODGE - TB-DL-35M
Category - D-LOK® Ball Bearings (DL Normal Duty Tapped Base Pillow Blocks)
Series - 207
Shaft Size (mm) - 35
Description - TB-DL-35M
Weight (kg) - 2.2

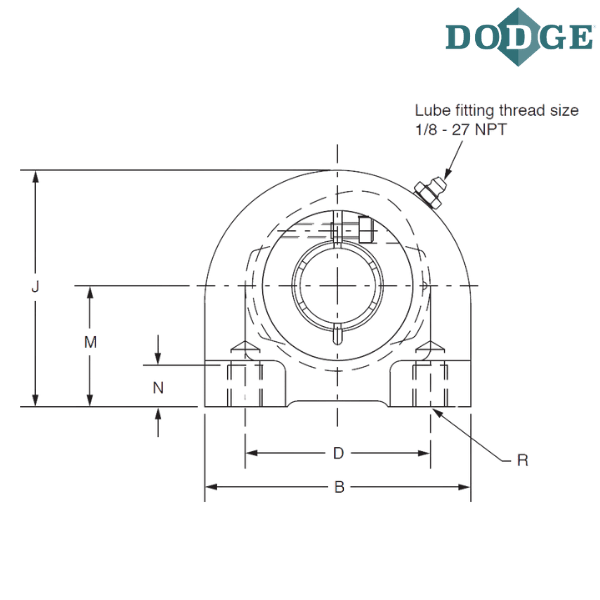

Length Through Bore (A) mm - 44.5
Overall Length (B) mm - 108
Width (C) mm - 47.8
Bolt Center to Center Length (D) mm - 82.6
Overall Height (J) mm - 95.3
L (mm) - 68.3
Base to Center Height (M) mm - 47.6
Minimum Tap Depth (N) mm - 19.1
Bolt Hole UNC-Thread (R) - M10x1.5
S (mm) - 27.4
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
TB - Tapped base pillow block
DL - Wide inner ring, normal duty, concentric clamp collar
M - Metric

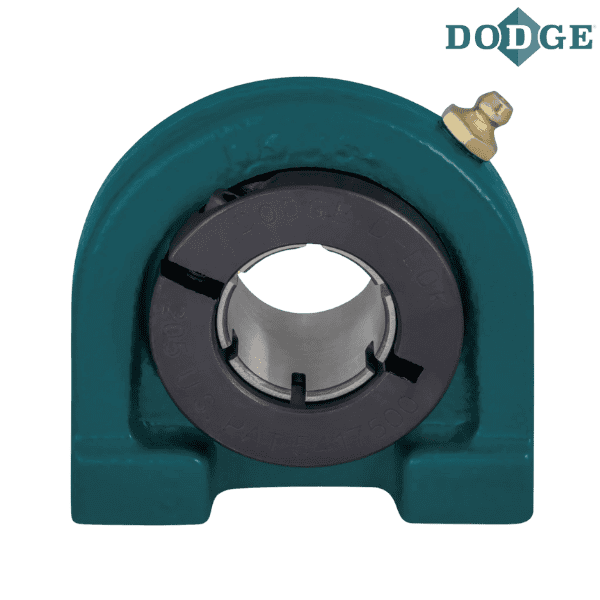

** Images are for representation purposes only
