Description
Brand - DODGE
Item Number - DODGE - SCHB-SXR-204
Category - Eccentric Collar Ball Bearings (SXR Normal Duty Screw Conveyor Hanger Bearings)
Series - 212
Shaft Size (inch) - 2.25
Description - SCHB-SXR-204
Weight (lbs) - 9.4

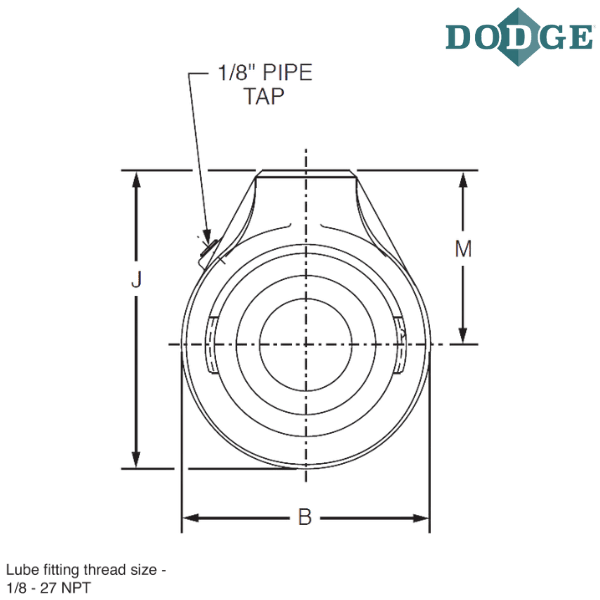

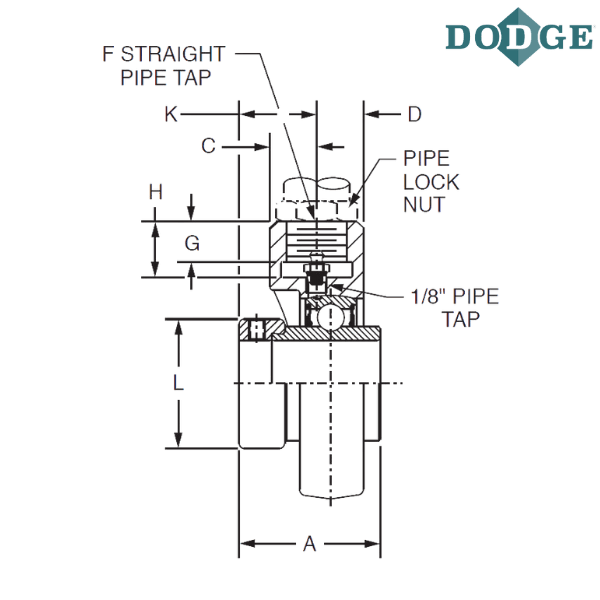

Length Through Bore (A) inch - 2.74
B (inch) - 5.5
C (inch) - 1.16
D (inch) - 1.78
F* (NPSM) inch - 1.25
G (inch) - 1.13
H (inch) - 1.44
Overall Length (J) inch - 6.75
K (inch) - 1.5
L (inch) - 3.31
M (inch) - 4
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
SCHB - Screw conveyor hanger bearing
SXR - Wide inner ring, normal duty, Eccentric locking Collar
* Use straight thread for the pipe. Bearing can be secured with a heavy locknut

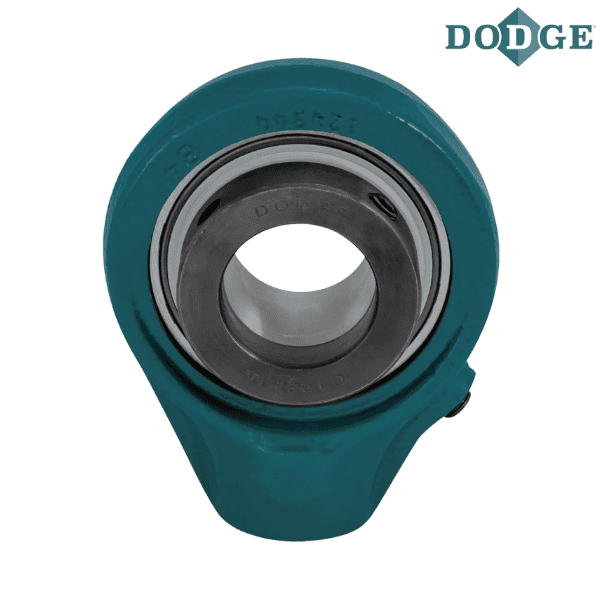

** Images are for representation purposes only
