DODGE - P4B534-ISAF-150ML


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - DODGE - P4B534-ISAF-150ML
Category - IMPERIAL ISAF 4-Bolt with Labyrinth Seal (Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22232
Shaft Size (mm) - 150
Part Name - P4B534-ISAF-150ML
SAF Series - 534

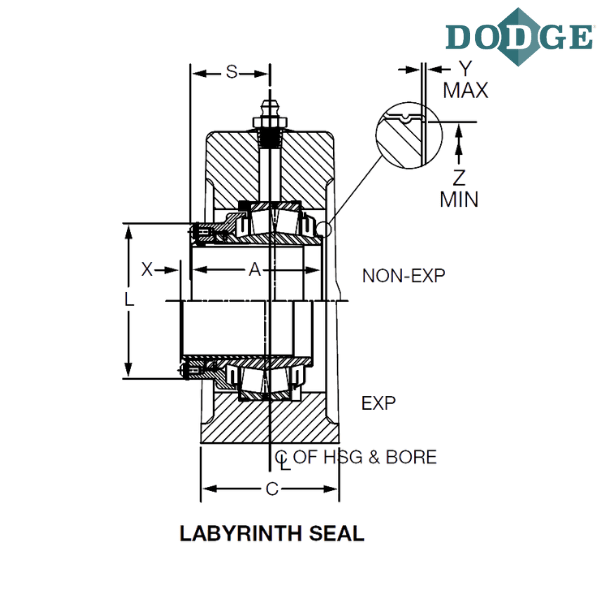

Length Through Bore (A) mm - 179.83
Overall Length (B) mm - 628.65
Width (C) mm - 171.45
Bolt to Bolt Minimum Distance (D min) mm - 492.25
Bolt to Bolt Maximum Distance (D max) mm - 549.4
E (mm) - 107.95
F-Bolt Diameter - M24
G (mm) - 57.15
H (mm) - 73.15
Overall Height (J) mm - 347.73
L (mm) - 260.35
Base to Center Height (M) mm - 179.32
P (mm) - 383.29
S (mm) - 104.39
Expansion (X) mm - 9.53
Y (mm) - 1.02
Z (mm) - 178.31
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4 Bolt Base
5XX - for interchangeable SAF style housings
ISAF - IMPERIAL SAF
M - Metric
L - Labyrinth Metallic Seal

** Images are representation purposes only
